NHD-0420CW-AR3
OLED MODULE 80DIG 20 X 4 PASSIVEManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

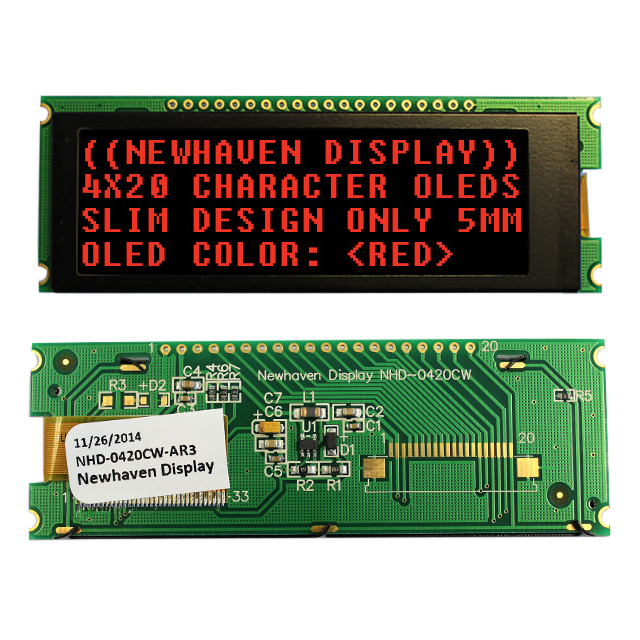

The Newhaven Display Intl NHD-0420CW-AR3 is a monochrome passive matrix OLED character display module. This module features a 20 character by 4 line display with a 5x8 dot matrix per character, providing 80 total characters. The NHD-0420CW-AR3 supports multiple interface options including Parallel (8-bit), I2C, and SPI, offering flexibility in system integration. Its red text on a black background and compact outline dimensions of 92.00mm x 31.50mm x 2.50mm make it suitable for applications requiring clear readability in a limited space. The operating temperature range of -40°C to 85°C ensures reliable performance across various environmental conditions. This component is commonly found in industrial control, test and measurement equipment, and portable electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | OLED |
| Display Mode | Passive |
| Backlight | - |
| Interface | Parallel, 8-Bit, I2C, SPI |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.4V ~ 5.5V |
| Viewing Area | 72.42mm L x 22.82mm W |
| Character Size | 4.77mm H x 2.97mm W |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.57mm W x 0.57mm H |
| Outline L x W x H | 92.00mm x 31.50mm x 2.50mm |
| Text Color | Red |
| Background Color | Black |
| Number of Characters | 80.0 |
