NHD-0420AZ-FL-YBW-3V
LCD MOD 80DIG 20X4 TRANS YLW/GRNManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

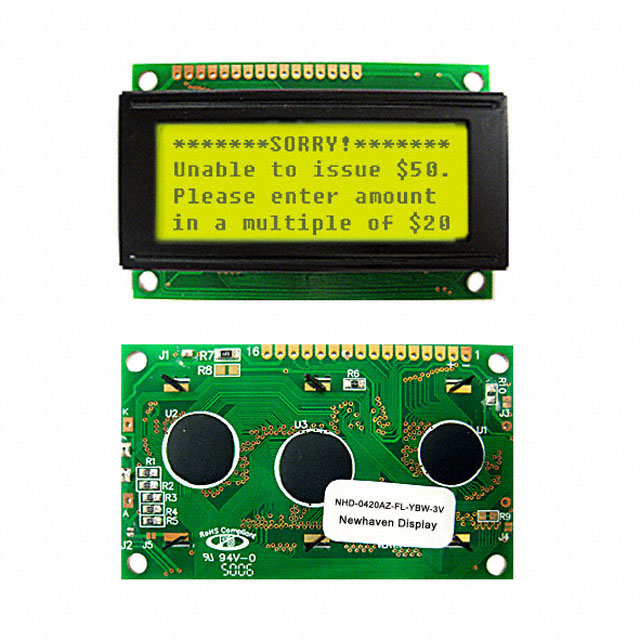

Newhaven Display Intl NHD-0420AZ-FL-YBW-3V is a transflective STN character display module featuring an 80-character capacity arranged in a 20x4 format. Each character cell is constructed with a 5x8 dot matrix, offering a dot size of 0.42mm W x 0.46mm H and character dimensions of 4.03mm H x 2.30mm W. The module utilizes a yellow/green LED backlight and a gray text color on a green background, providing excellent readability in diverse lighting conditions. Its parallel interface simplifies integration into embedded systems. This unit operates within a voltage range of 2.7V to 3.3V and a temperature range of -20°C to 70°C. The overall dimensions are 77.00mm x 47.00mm x 14.50mm, with a viewing area of 60.00mm L x 22.00mm W. Applications span industrial control, test and measurement equipment, and data logging systems where clear, reliable display output is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Yellow/Green |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 2.7V ~ 3.3V |
| Viewing Area | 60.00mm L x 22.00mm W |
| Character Size | 4.03mm H x 2.30mm W |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.42mm W x 0.46mm H |
| Outline L x W x H | 77.00mm x 47.00mm x 14.50mm |
| Text Color | Gray |
| Background Color | Green |
| Number of Characters | 80.0 |
