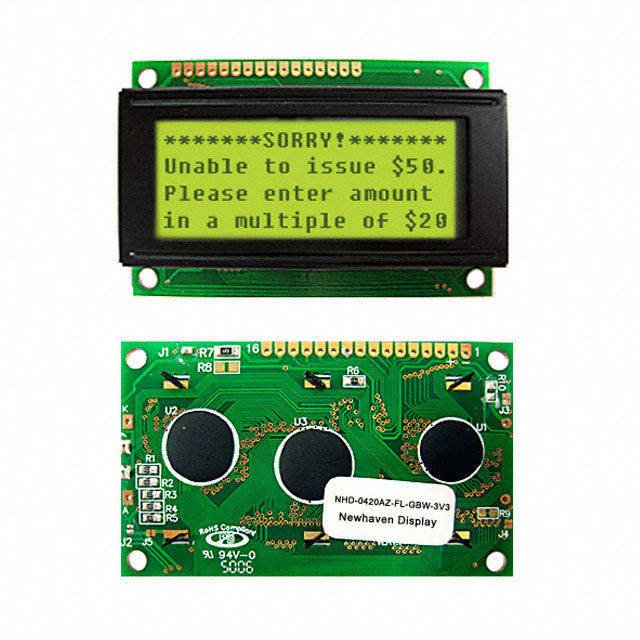

NHD-0420AZ-FL-GBW-3V
LCD MOD 80DIG 20X4 TRANS YLW/GRNManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Newhaven Display Intl NHD-0420AZ-FL-GBW-3V is a transflective STN character display module featuring a 20x4 character format with 80 total characters. The display utilizes a Yellow/Green LED backlight and offers a gray text color on a green background. Its character format is 5x8 dots with individual dot dimensions of 0.42mm W x 0.46mm H, and character dimensions of 4.03mm H x 2.30mm W. The module operates within a voltage range of 2.7V to 3.3V and boasts an operating temperature range of -20°C to 70°C. The parallel interface facilitates data communication. This component is suitable for applications in industrial control, test and measurement equipment, and general electronic devices. The overall dimensions are 77.00mm x 47.00mm x 14.50mm, with a viewing area of 60.00mm L x 22.00mm W.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Yellow/Green |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 2.7V ~ 3.3V |
| Viewing Area | 60.00mm L x 22.00mm W |
| Character Size | 4.03mm H x 2.30mm W |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.42mm W x 0.46mm H |
| Outline L x W x H | 77.00mm x 47.00mm x 14.50mm |
| Text Color | Gray |
| Background Color | Green |
| Number of Characters | 80.0 |
