NHD-0240BZ-NSW-BTW-P
LCD MOD 80DIG 40X2 TRANSMISV WHTManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

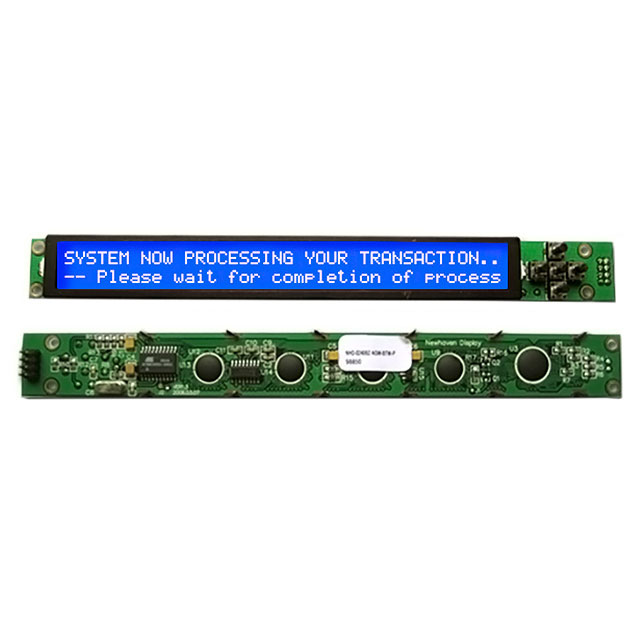

Newhaven Display Intl NHD-0240BZ-NSW-BTW-P is a transmissive STN character display module featuring a 40x2 character format with an 80-character capacity. This module utilizes a white LED backlight and displays white text on a blue background, with characters formed by a 5x8 dot matrix. The dot size is 0.60mm W x 0.65mm H, and character size is 5.55mm H x 3.20mm W, offering a viewing area of 153.50mm L x 16.00mm W. It operates with a 12V supply voltage and interfaces via RS-232. The operating temperature range is -20°C to 70°C. Its dimensions are 163.00mm x 22.00mm x 13.40mm. This display module is suitable for applications in industrial automation, test and measurement equipment, and point-of-sale systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | RS-232 |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 12V |
| Viewing Area | 153.50mm L x 16.00mm W |
| Character Size | 5.55mm H x 3.20mm W |
| Display Format | 40 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.60mm W x 0.65mm H |
| Outline L x W x H | 163.00mm x 22.00mm x 13.40mm |
| Text Color | White |
| Background Color | Blue |
| Number of Characters | 80.0 |
