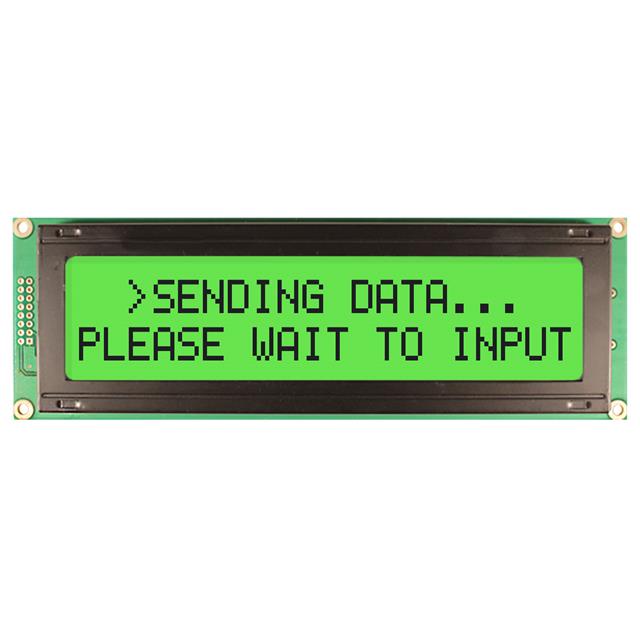

NHD-0220JZ-FSPG-GBW
LCD MOD 40DIG 20X2 TRANSFLCT GRNManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Green Parallel 182.00mm x 60.00mm x 14.00mm
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Green |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 4.7V ~ 5.5V |
| Viewing Area | 147.00mm L x 35.20mm W |
| Character Size | 12.70mm H x 5.90mm W |
| Display Format | 20 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 1.10mm W x 1.50mm H |
| Controller Type | S6A0069 |
| Outline L x W x H | 182.00mm x 60.00mm x 14.00mm |
| Text Color | Blue |
| Background Color | Green |
| Number of Characters | 40.0 |
