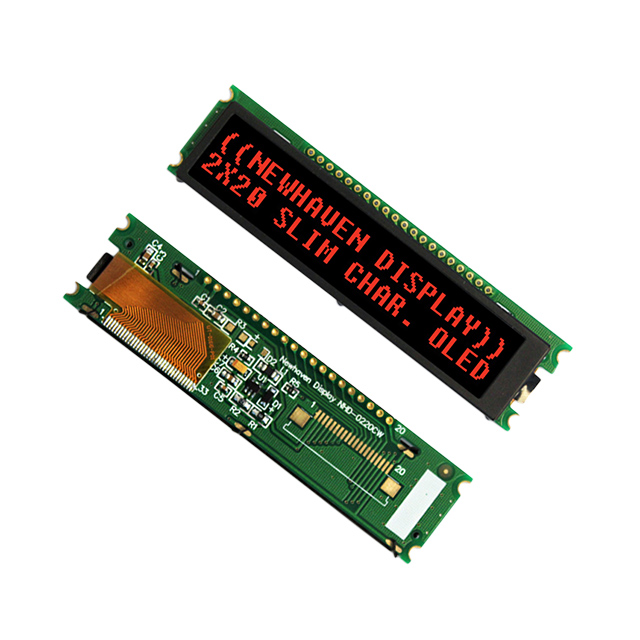

NHD-0220CW-AR3
OLED MODULE 40DIG 20 X 2 PASSIVEManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Newhaven Display Intl NHD-0220CW-AR3 is a 20x2 character passive OLED display module featuring a red text color on a black background. This display offers a 5 x 8 dot character format with a character size of 5.57mm H x 3.22mm W and a dot size of 0.62mm W x 0.67mm H. The module supports multiple interfaces, including Parallel, 8-Bit, I2C, and SPI, providing flexibility for various system integrations. With an operating temperature range of -40°C to 85°C, it is suitable for demanding applications. The overall dimensions are 92.00mm x 23.30mm x 2.50mm, with a viewing area of 77.92mm L x 16.28mm W. This component is commonly utilized in industrial automation, medical devices, and portable electronics. The supply voltage range is 2.4V to 5.5V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | OLED |
| Display Mode | Passive |
| Backlight | - |
| Interface | Parallel, 8-Bit, I2C, SPI |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.4V ~ 5.5V |
| Viewing Area | 77.92mm L x 16.28mm W |
| Character Size | 5.57mm H x 3.22mm W |
| Display Format | 20 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.62mm W x 0.67mm H |
| Outline L x W x H | 92.00mm x 23.30mm x 2.50mm |
| Text Color | Red |
| Background Color | Black |
| Number of Characters | 40.0 |
