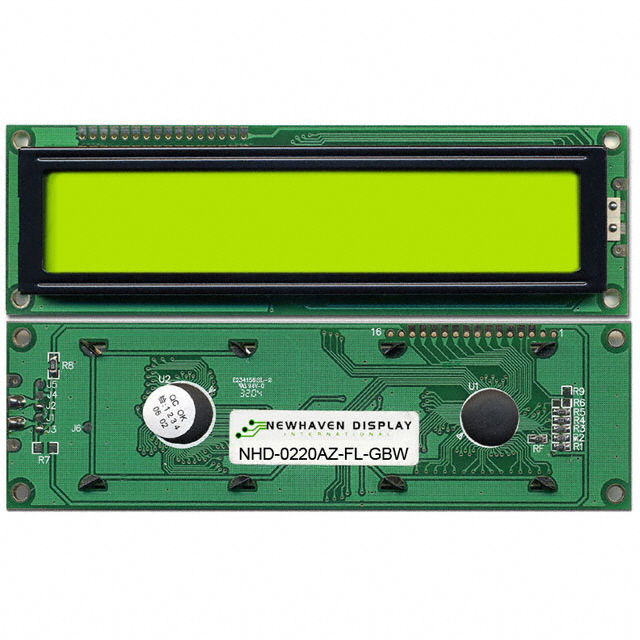

NHD-0220AZ-FL-GBW
LCD MOD 40DIG 20X2 TRANS YLW/GRNManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Newhaven Display Intl NHD-0220AZ-FL-GBW is a 20x2 character LCD module featuring a transflective STN display. This module provides a 5x8 dot character format with a yellow/green LED backlight for enhanced visibility. The parallel interface simplifies integration into various designs. Operating within a temperature range of -20°C to 70°C, it offers a reliable solution for applications requiring clear alphanumeric display. Its dimensions are 146.00mm x 43.00mm x 14.20mm, with a viewing area of 123.00mm x 23.00mm. This display is suitable for use in industrial control, instrumentation, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Yellow/Green |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 4.7V ~ 5.5V |
| Viewing Area | 123.00mm L x 23.00mm W |
| Character Size | 9.22mm H x 4.84mm W |
| Display Format | 20 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.92mm W x 1.10mm H |
| Outline L x W x H | 146.00mm x 43.00mm x 14.20mm |
| Text Color | Gray |
| Background Color | Green |
| Number of Characters | 40.0 |
