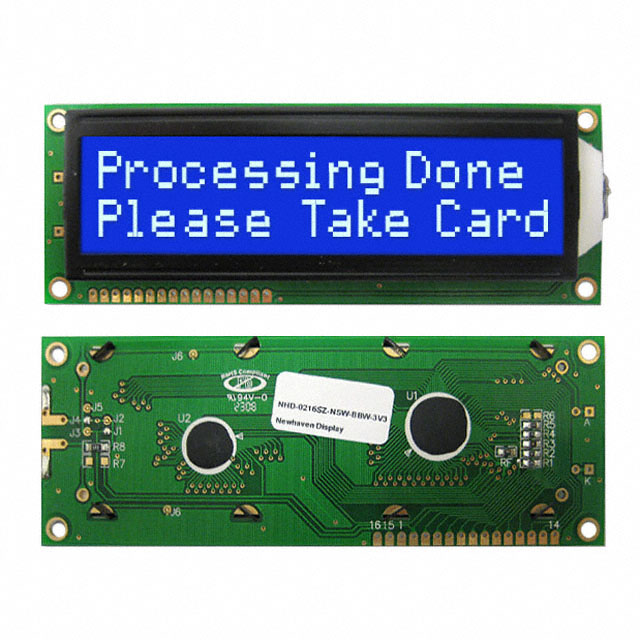

NHD-0216SZ-NSW-BBW-3V

LCD MOD 32DIG 16X2 TRANSMISV WHT

Manufacturer: Newhaven Display Intl

Categories: LCD, OLED Character and Numeric

Quality Control: Learn More

The Newhaven Display Intl NHD-0216SZ-NSW-BBW-3V is a 16x2 character LCD module featuring a transmissive STN display with white LED backlighting. This module provides a 5x7 dot matrix character format with cursor support, displaying white text on a blue background. The parallel interface facilitates integration into a wide range of embedded systems. With an operating temperature range of -20°C to 70°C and a supply voltage of 4.7V to 5.5V, this display is suitable for applications in industrial automation, medical instrumentation, and consumer electronics. The module's dimensions are 126.00mm x 44.00mm x 10.50mm, with a viewing area of 99.50mm x 36.00mm.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:
Technical Details:
PackagingBox
Display TypeSTN - Super-Twisted Nematic
Display ModeTransmissive
BacklightLED - White
InterfaceParallel
Operating Temperature-20°C ~ 70°C
Voltage - Supply4.7V ~ 5.5V
Viewing Area99.50mm L x 36.00mm W
Character Size8.06mm H x 4.84mm W
Display Format16 x 2
Character Format5 x 7 Dots w/Cursor
Dot Size0.92mm W x 1.10mm H
Outline L x W x H126.00mm x 44.00mm x 10.50mm
Text ColorWhite
Background ColorBlue
Number of Characters32.0
