NHD-0216SZ-FL-GBW
LCD MOD 32DIG 16X2 TRANS YLW/GRNManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

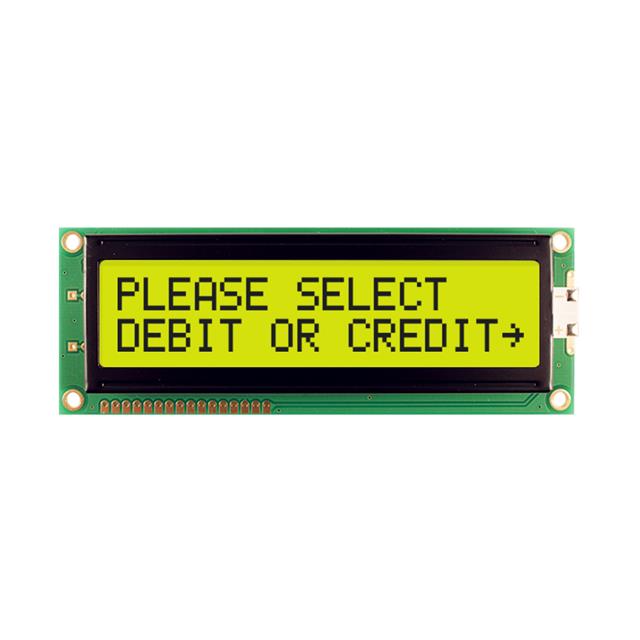

Newhaven Display Intl's NHD-0216SZ-FL-GBW is a 16x2 character LCD module featuring a transflective STN display with a yellow/green LED backlight. This display offers a 5x8 dot matrix character format with a character size of 9.55mm H x 5.20mm W and dot dimensions of 1.00mm W x 1.15mm H. The module supports a parallel interface and is driven by a SPLC780D or ST7066U controller. Its operating temperature range is -20°C to 70°C, and it operates on a supply voltage of 4.7V to 5.5V. The overall dimensions are 122.00mm x 44.00mm x 13.50mm, with a viewing area of 99.00mm L x 24.00mm W. This display is commonly utilized in industrial control, medical equipment, and point-of-sale systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Yellow/Green |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 4.7V ~ 5.5V |
| Viewing Area | 99.00mm L x 24.00mm W |
| Character Size | 9.55mm H x 5.20mm W |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 1.00mm W x 1.15mm H |
| Controller Type | SPLC780D OR ST7066U |
| Outline L x W x H | 122.00mm x 44.00mm x 13.50mm |
| Text Color | Blue |
| Background Color | Green |
| Number of Characters | 32.0 |
