NHD-0216K1Z-FS(RGB)-FBW
LCD MOD 32DIG 16X2 TRANSFL R/G/BManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

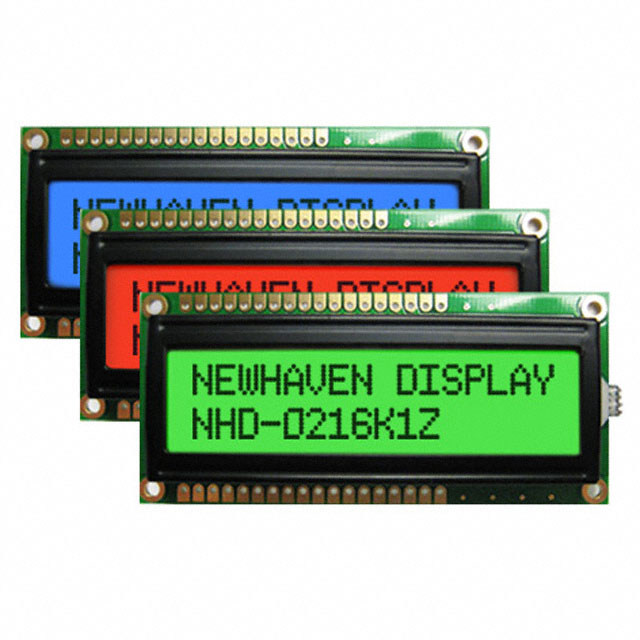

Newhaven Display Intl NHD-0216K1Z-FS-RGB-FBW is a 16x2 character LCD module featuring a transflective FSTN display with a 5 x 8 dot character format. This module offers customizable Red/Green/Blue LED backlighting, enabling versatile display options. The parallel interface facilitates straightforward integration into embedded systems. With an operating temperature range of -20°C to 70°C and a robust build, it is suitable for demanding applications in industrial control, medical instrumentation, and point-of-sale systems. The module's outline dimensions are 80.00mm x 36.00mm x 13.50mm, with a viewing area of 64.50mm x 16.40mm. The supply voltage range is 4.7V to 5.5V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:-FBW&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Box |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Red/Green/Blue |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 4.7V ~ 5.5V |
| Viewing Area | 64.50mm L x 16.40mm W |
| Character Size | 5.23mm H x 3.00mm W |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.56mm W x 0.61mm H |
| Outline L x W x H | 80.00mm x 36.00mm x 13.50mm |
| Text Color | Black |
| Background Color | Red/Green/Blue |
| Number of Characters | 32.0 |
