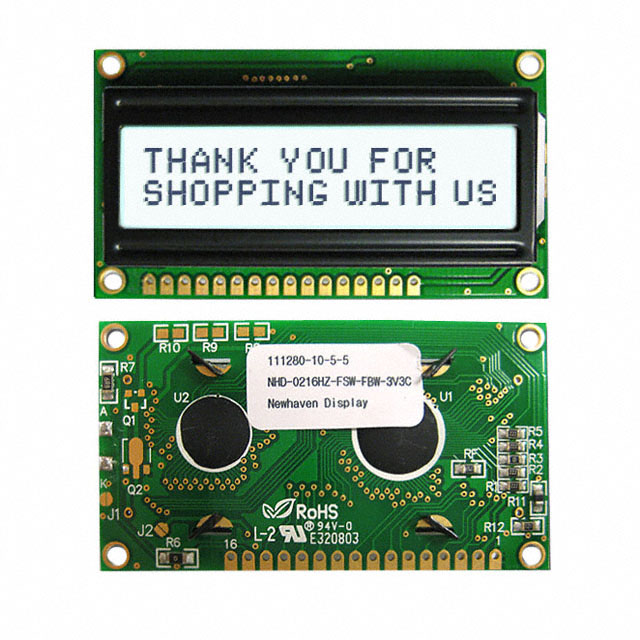

NHD-0216HZ-FSW-FBW-3V3C
LCD MOD 32DIG 16X2 TRANSFLCT WHTManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
The Newhaven Display Intl NHD-0216HZ-FSW-FBW-3V3C is a 16x2 character LCD module featuring a transflective FSTN display with white LED backlighting. This module offers a 32-character display capacity, with each character rendered in a 5x8 dot format. The parallel interface facilitates straightforward integration into various systems. With a dot size of 0.47mm W x 0.58mm H and character dimensions of 4.99mm H x 2.55mm W, it provides clear readability. The operating temperature range of -20°C to 70°C makes it suitable for diverse environmental conditions. Its transflective nature allows for excellent readability in both bright and low-light situations. Applications span industrial control, instrumentation, and point-of-sale systems. The module's outline dimensions are 65.50mm x 36.70mm x 13.50mm, with a viewing area of 54.00mm L x 14.40mm W. It operates from a supply voltage of 2.7V to 3.3V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - White |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 2.7V ~ 3.3V |
| Viewing Area | 54.00mm L x 14.40mm W |
| Character Size | 4.99mm H x 2.55mm W |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.47mm W x 0.58mm H |
| Outline L x W x H | 65.50mm x 36.70mm x 13.50mm |
| Text Color | Gray |
| Background Color | White |
| Number of Characters | 32.0 |
Request a Quote
Clients Also Buy

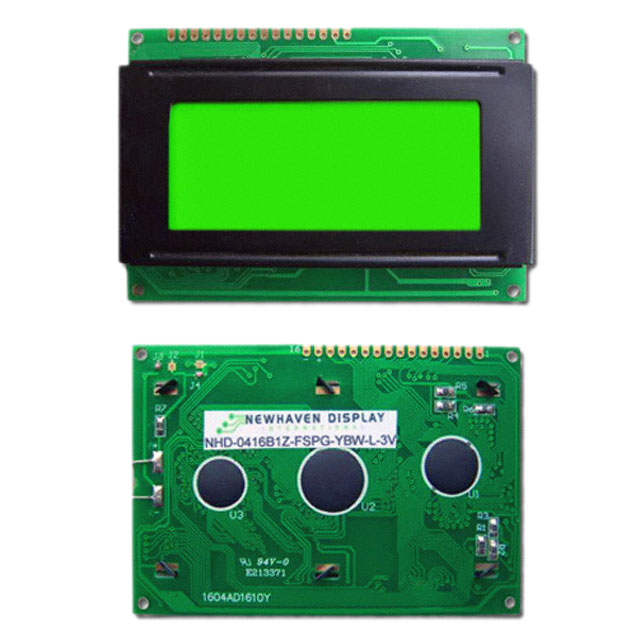

NHD-0416B1Z-FSPG-YBW-L-3V
LCD MOD 64DIG 16X4 TRANSFLCT GRN

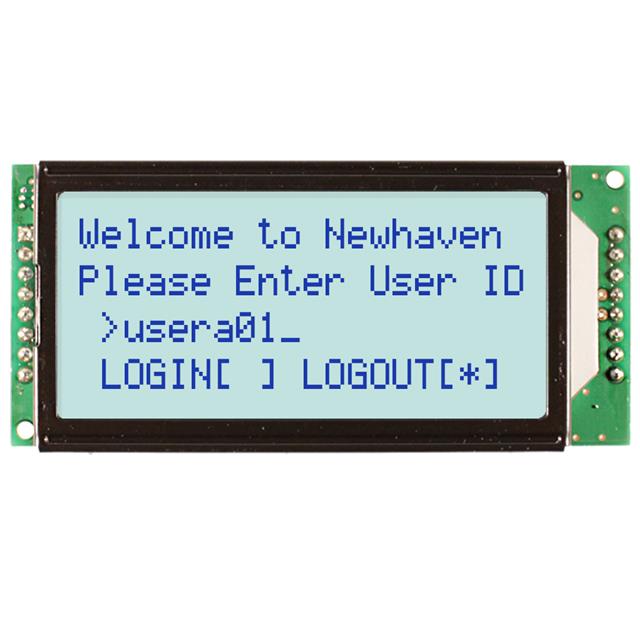

NHD-0420H1Z-FSW-GBW-3V3
LCD MOD 80DIG 20X4 TRANSFLCT WHT

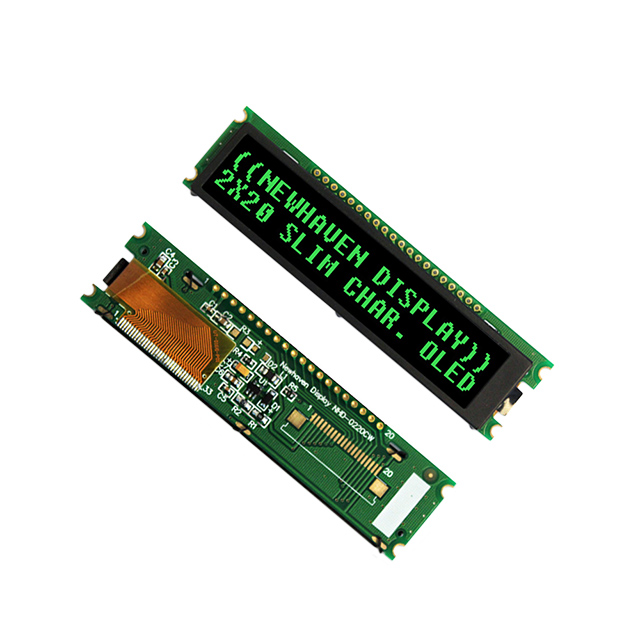

NHD-0220CW-AG3
