NHD-0216CW-AG3
OLED MODULE 32DIG 16 X 2 PASSIVEManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

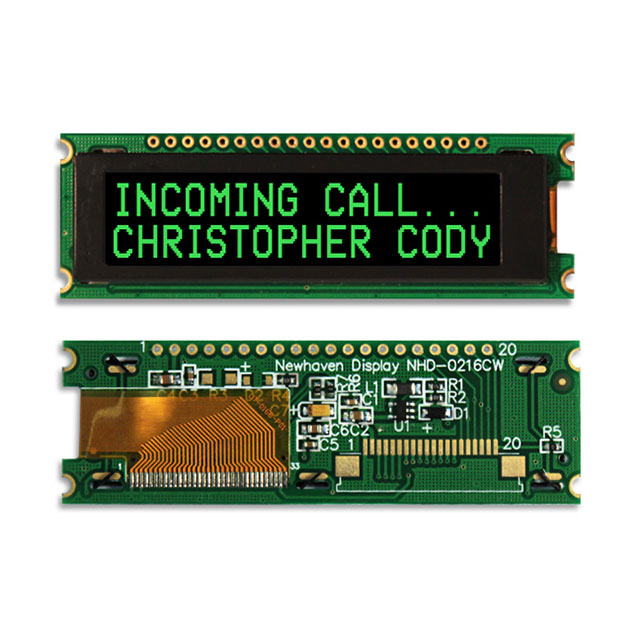

Newhaven Display Intl NHD-0216CW-AG3 is a 16x2 character passive OLED display module featuring a 5x8 dot character format. This display offers a green text color against a black background, with a dot size of 0.57mm W x 0.67mm H and character dimensions of 5.57mm H x 2.97mm W. The NHD-0216CW-AG3 supports multiple interface options including Parallel, 8-Bit, I2C, and SPI, controlled by the US2066. Its compact outline dimensions are 76.00mm x 24.50mm x 2.50mm, with a viewing area of 58.22mm L x 13.52mm W. Operating across a temperature range of -40°C to 85°C, this module is suitable for applications in industrial control, medical devices, and consumer electronics. The voltage supply range is 2.4V to 5.5V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | OLED |
| Display Mode | Passive |
| Backlight | - |
| Interface | Parallel, 8-Bit, I2C, SPI |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.4V ~ 5.5V |
| Viewing Area | 58.22mm L x 13.52mm W |
| Character Size | 5.57mm H x 2.97mm W |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.57mm W x 0.67mm H |
| Controller Type | US2066 |
| Outline L x W x H | 76.00mm x 24.50mm x 2.50mm |
| Text Color | Green |
| Background Color | Black |
| Number of Characters | 32.0 |
