NHD-0216BZ-FL-GBW
LCD MOD 32DIG 16X2 TRANS YLW/GRNManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

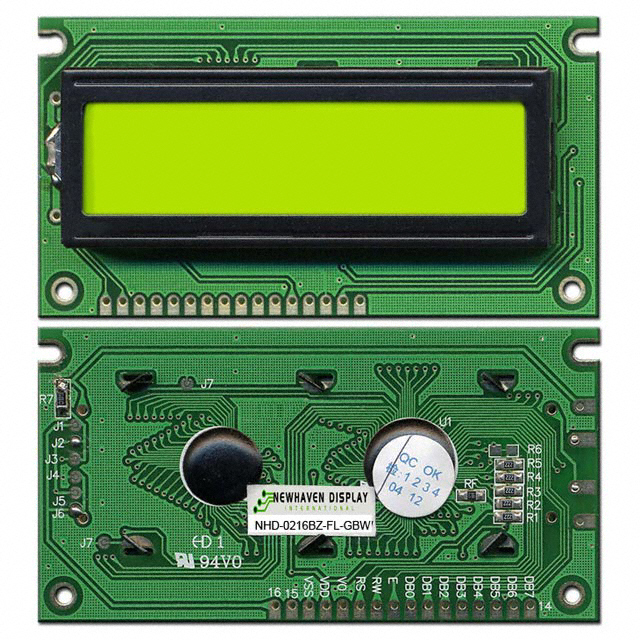

Newhaven Display Intl NHD-0216BZ-FL-GBW is a 16x2 character LCD module featuring a transflective STN display. This module presents 32 characters with a 5x8 dot matrix format and a gray text color on a green background. The yellow/green LED backlight provides clear visibility in various lighting conditions. With a parallel interface, the NHD-0216BZ-FL-GBW offers a dot size of 0.56mm W x 0.61mm H and a character size of 5.23mm H x 3.00mm W. The operating temperature range is -20°C to 70°C, and the supply voltage is between 4.7V and 5.5V. This display module is suitable for applications in industrial automation, test and measurement equipment, and consumer electronics. The overall dimensions are 84.00mm x 44.00mm x 13.50mm, with a viewing area of 64.50mm L x 16.40mm W.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Yellow/Green |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 4.7V ~ 5.5V |
| Viewing Area | 64.50mm L x 16.40mm W |
| Character Size | 5.23mm H x 3.00mm W |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.56mm W x 0.61mm H |
| Outline L x W x H | 84.00mm x 44.00mm x 13.50mm |
| Text Color | Gray |
| Background Color | Green |
| Number of Characters | 32.0 |
