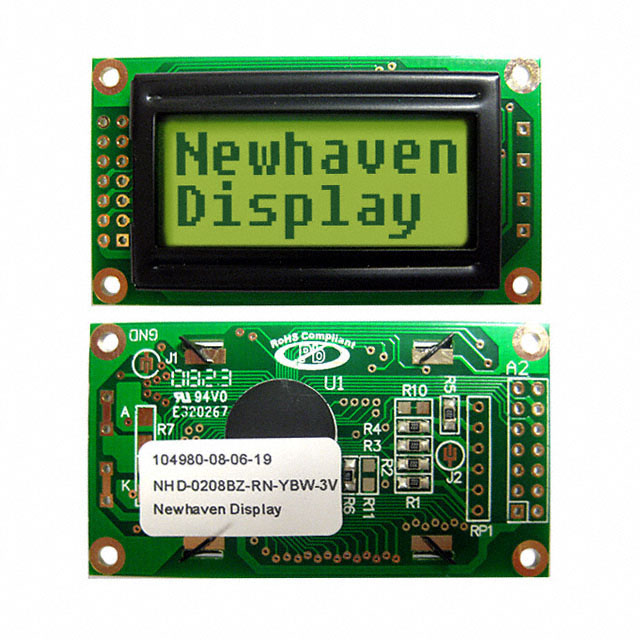

NHD-0208BZ-RN-YBW-3V
LCD MOD 16 DIG 8 X 2 REFLECTIVEManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Newhaven Display Intl NHD-0208BZ-RN-YBW-3V is a character LCD module featuring an 8x2 display format. This STN (Super-Twisted Nematic) display offers a reflective mode, eliminating the need for a backlight, and presents characters in a green background with gray text. The character format is 5x8 dots, with individual dot dimensions of 0.56mm W x 0.66mm H, and character dimensions of 5.56mm H x 2.96mm W, supporting 16 characters in total. The module utilizes a parallel interface and operates within a voltage supply range of 2.7V to 3.3V. Its overall dimensions are 58.00mm x 32.00mm x 9.50mm, with a viewing area of 38.00mm L x 16.00mm W. This component is suitable for applications in industrial control, consumer electronics, and instrumentation. The operating temperature range is -20°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Reflective |
| Backlight | Without Backlight |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 2.7V ~ 3.3V |
| Viewing Area | 38.00mm L x 16.00mm W |
| Character Size | 5.56mm H x 2.96mm W |
| Display Format | 8 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.56mm W x 0.66mm H |
| Outline L x W x H | 58.00mm x 32.00mm x 9.50mm |
| Text Color | Gray |
| Background Color | Green |
| Number of Characters | 16.0 |
