NHD-0208AZ-RN-YBW-3V
LCD MOD 16 DIG 8 X 2 REFLECTIVEManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

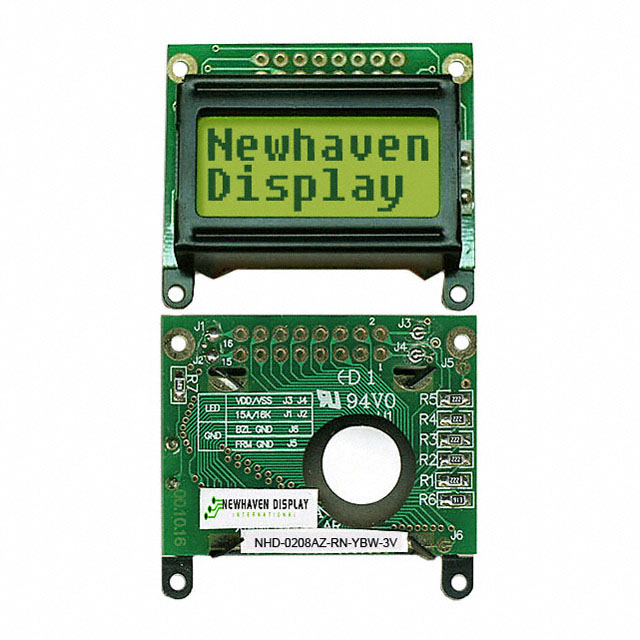

Newhaven Display Intl NHD-0208AZ-RN-YBW-3V is a character LCD module featuring an 8x2 display format with a total capacity of 16 characters. This STN-Super-Twisted Nematic display operates in reflective mode, eliminating the need for a backlight and providing a green background with gray text. The character format utilizes a 5x8 dot matrix configuration, with individual character dimensions of 4.75mm H x 2.95mm W and dot dimensions of 0.55mm W x 0.55mm H. The module supports a parallel interface and operates within a voltage supply range of 2.7V to 3.3V. Its outline dimensions are 40.00mm x 35.40mm x 13.50mm, with a viewing area of 30.40mm L x 13.90mm W. The operating temperature range is -20°C to 70°C. This component is commonly utilized in industrial control, automation, and portable instrumentation applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Reflective |
| Backlight | Without Backlight |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 2.7V ~ 3.3V |
| Viewing Area | 30.40mm L x 13.90mm W |
| Character Size | 4.75mm H x 2.95mm W |
| Display Format | 8 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.55mm W x 0.55mm H |
| Outline L x W x H | 40.00mm x 35.40mm x 13.50mm |
| Text Color | Gray |
| Background Color | Green |
| Number of Characters | 16.0 |
