NHD-0116DZ-FL-YBW-33V
LCD MOD 16DIG 16X1 TRANS YLW/GRNManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

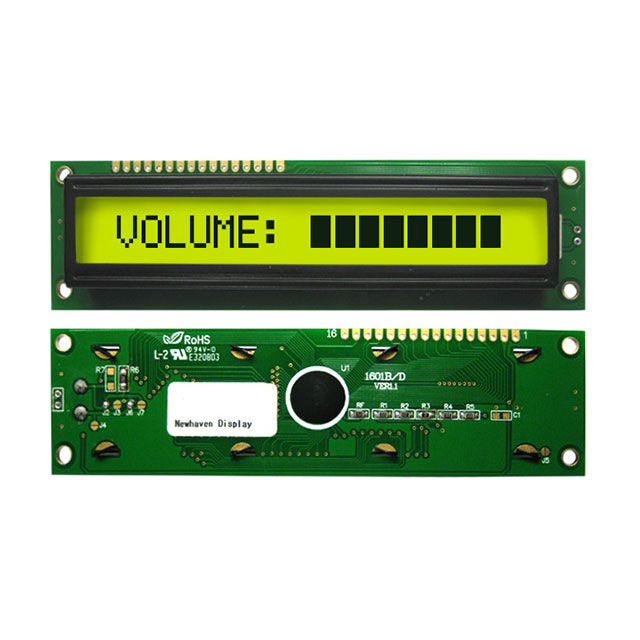

Newhaven Display Intl NHD-0116DZ-FL-YBW-33V is a 16-character, 1-line monochrome LCD character display module. This transflective STN display features a yellow/green LED backlight and provides a 5 x 7 dot matrix character format with cursor. The module operates on a 3.3V supply and utilizes a parallel interface for data and control signals. Its robust design is suitable for operation across a -20°C to 70°C temperature range, making it applicable in industrial control, instrumentation, and point-of-sale systems. The viewing area measures 99.00mm L x 13.00mm W, with an overall outline of 122.00mm x 33.00mm x 14.00mm. The controller is compatible with SPLC780D or ST7066U.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Yellow/Green |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 3.3V |
| Viewing Area | 99.00mm L x 13.00mm W |
| Character Size | 9.66mm H x 4.84mm W |
| Display Format | 16 x 1 |
| Character Format | 5 x 7 Dots w/Cursor |
| Dot Size | 0.92mm W x 1.10mm H |
| Controller Type | SPLC780D OR ST7066U |
| Outline L x W x H | 122.00mm x 33.00mm x 14.00mm |
| Text Color | Blue |
| Background Color | Green |
| Number of Characters | 16.0 |
