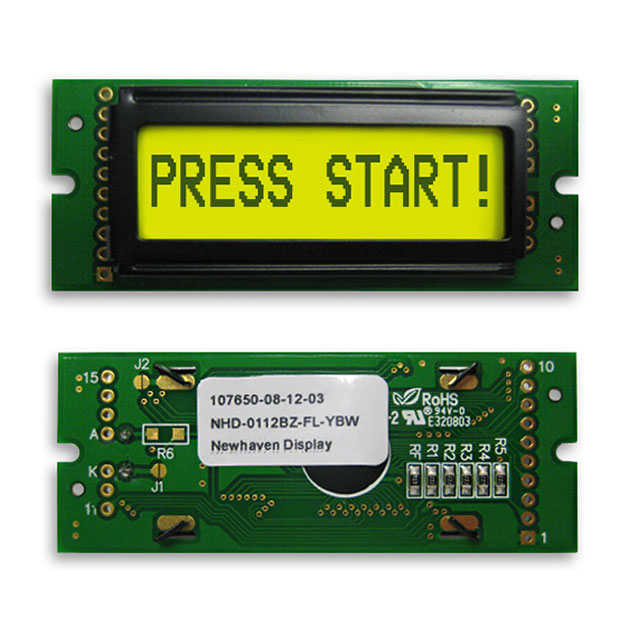

NHD-0112BZ-FL-YBW
LCD MOD 12DIG 12X1 TRANS YLW/GRNManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Newhaven Display Intl NHD-0112BZ-FL-YBW is a 12-character, 1-line transflective STN character display module. This module features a 5 x 8 dot matrix character format with a blue text color on a green background. The yellow/green LED backlight provides illumination for enhanced visibility. Designed with a parallel interface and commonly controlled by SPLC780D or ST7066U controllers, it offers a compact outline of 69.00mm x 27.00mm x 13.00mm. Operating within a temperature range of -20°C to 70°C and requiring a supply voltage of 4.7V to 5.5V, this display is suitable for applications in industrial control and instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Yellow/Green |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 4.7V ~ 5.5V |
| Viewing Area | 45.20mm L x 13.80mm W |
| Character Size | 5.00mm H x 2.70mm W |
| Display Format | 12 x 1 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.50mm W x 0.75mm H |
| Controller Type | SPLC780D OR ST7066U |
| Outline L x W x H | 69.00mm x 27.00mm x 13.00mm |
| Text Color | Blue |
| Background Color | Green |
| Number of Characters | 12.0 |
