NHD-0108CZ-FSW-GBW-3V3
LCD MOD 8DIG 8X1 TRANSFLECTV WHTManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

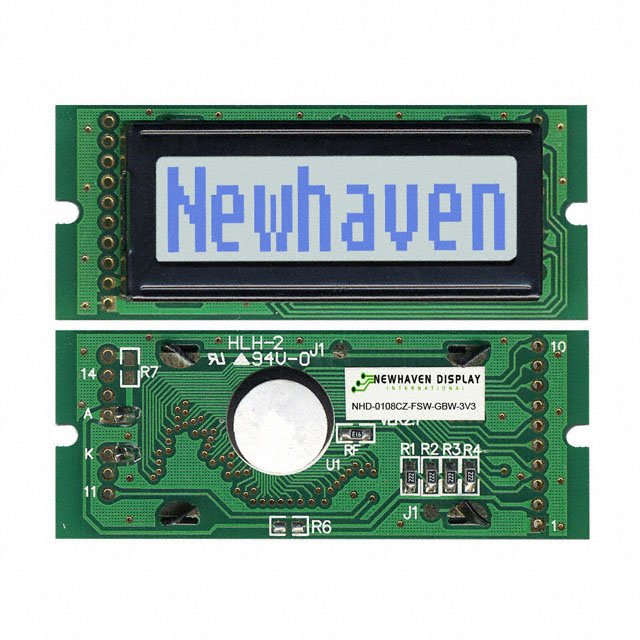

Newhaven Display Intl NHD-0108CZ-FSW-GBW-3V3 is an 8x1 character LCD module featuring a transflective STN display with white LED backlight. This module offers a 5x8 dot character format with a blue text color on a gray background. The operating temperature range is -20°C to 70°C and it operates at a 3.3V supply voltage. The parallel interface facilitates integration. Its transflective nature allows for readability in both ambient light and with the backlight. This display is suitable for applications in industrial control, instrumentation, and portable electronics where clear character display is critical. The overall dimensions are 69.00mm x 27.00mm x 13.00mm, with a viewing area of 45.20mm L x 13.80mm W.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - White |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 3.3V |
| Viewing Area | 45.20mm L x 13.80mm W |
| Character Size | 7.71mm H x 4.20mm W |
| Display Format | 8 x 1 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.80mm W x 0.92mm H |
| Outline L x W x H | 69.00mm x 27.00mm x 13.00mm |
| Text Color | Blue |
| Background Color | Gray |
| Number of Characters | 8.0 |
