NHD-0108BZ-RN-YBW-3V
LCD MOD 8 DIG 8 X 1 REFLECTIVEManufacturer: Newhaven Display Intl
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

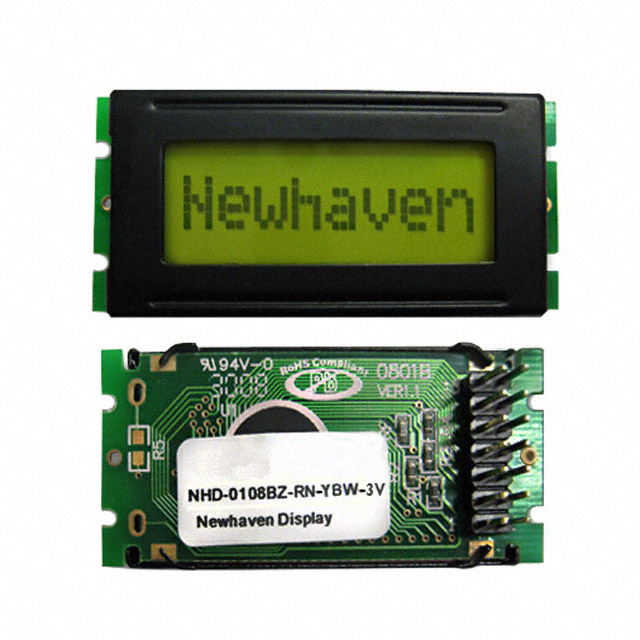

Newhaven Display Intl NHD-0108BZ-RN-YBW-3V is an 8-character, 1-line STN-Super-Twisted Nematic character display module. This reflective display operates without a backlight, ideal for low-power applications. It features a 5 x 8 dot character format with a character size of 7.10mm height by 3.40mm width, and a dot size of 0.60mm width by 0.80mm height. The module utilizes a parallel interface and offers a gray text color on a green background. Its operating temperature range is -20°C to 70°C, with a supply voltage requirement of 2.7V to 3.3V. The overall dimensions are 53.00mm x 24.20mm x 11.00mm, with a viewing area of 35.00mm L x 12.60mm W. This component is suitable for use in industrial controls and instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Reflective |
| Backlight | Without Backlight |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 2.7V ~ 3.3V |
| Viewing Area | 35.00mm L x 12.60mm W |
| Character Size | 7.10mm H x 3.40mm W |
| Display Format | 8 x 1 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.60mm W x 0.80mm H |
| Outline L x W x H | 53.00mm x 24.20mm x 11.00mm |
| Text Color | Gray |
| Background Color | Green |
| Number of Characters | 8.0 |
