XHP70A-0S-04-0D0BM430E
LED MOD XHP70A WARM WHT SQ 3000KManufacturer: New Energy
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

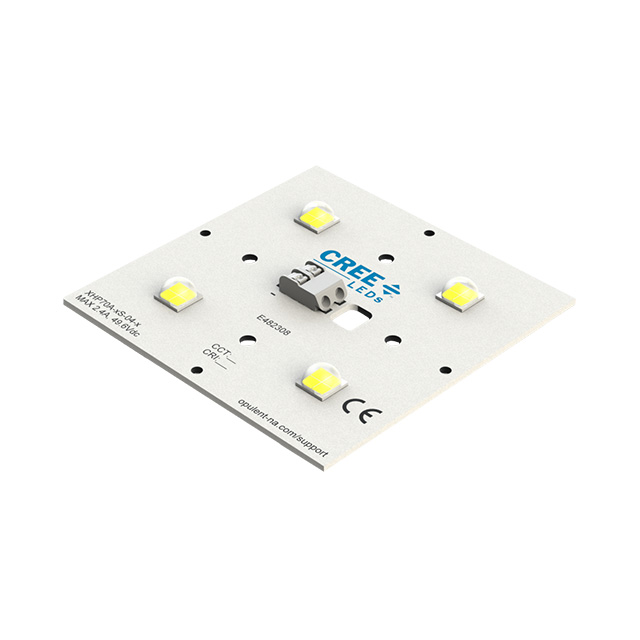

New Energy XHP70A series LED module, part number XHP70A-0S-04-0D0BM430E. This warm white LED module features a square light-emitting surface and a 3000K color temperature with a 5-step MacAdam ellipse for tight color consistency. Optimized for high-power illumination, it achieves a typical luminous flux of 5940 lumens at 1.05A test current, with a luminous efficacy of 122 lm/W at 85°C. The module operates at a forward voltage of 46.4V (typical) and supports a maximum continuous current of 2.4A. Its robust design is suitable for demanding lighting applications in automotive, industrial, and architectural sectors. Packaged in trays, this LED module offers a compact 73.15mm x 73.15mm footprint.
Additional Information
Series: XHP70ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 73.15mm L x 73.15mm W |
| Type | LED Module |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 46.4V |
| Height | - |
| Current - Test | 1.05A |
| Viewing Angle | - |
| Lens Type | Domed |
| Current - Max | 2.4A |
| Lumens/Watt @ Current - Test | 122 lm/W |
| CCT (K) | 3000K 5-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 5940lm (Typ) |
