XHP70A-00-0000-0D0BN450E-SB01
LED MOD XLAMP WH STARBOARD 5000KManufacturer: New Energy
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

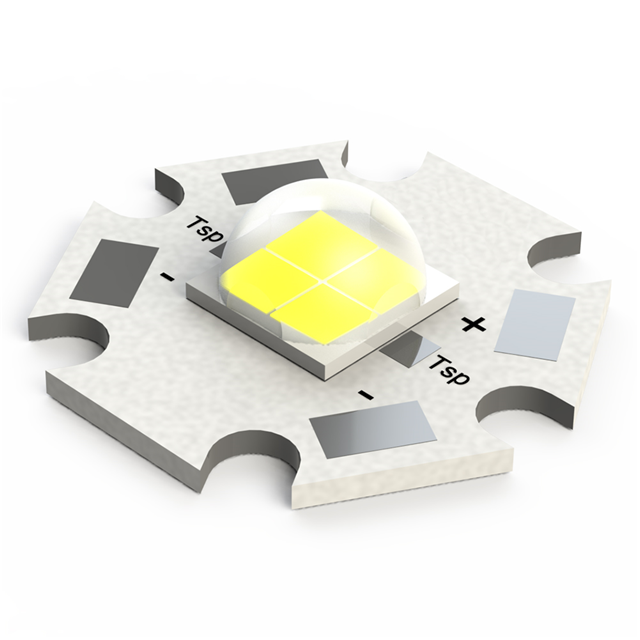

New Energy Xlamp® XHP70 Series LED module, part number XHP70A-00-0000-0D0BN450E-SB01. This cool white LED module features a 5000K color temperature with a 5-step MacAdam ellipse binning for tight color consistency. Delivering 1770 lumens at a test current of 2.1A and 85°C, it achieves a luminous efficacy of 145 lm/W. The module is configured on a starboard with a 120° viewing angle and a domed lens. It supports a maximum current of 4.8A and a test current of 2.1A, with a typical forward voltage of 6V. This component is suitable for high-output lighting applications across various industries, including architectural lighting, industrial lighting, and general illumination. Packaged in a tray.
Additional Information
Series: Xlamp® XHP70RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 19.89mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 6V, 12V |
| Height | - |
| Current - Test | 2.1A, 1.05A |
| Viewing Angle | 120° |
| Lens Type | Domed |
| Current - Max | 4.8A, 2.4A |
| Lumens/Watt @ Current - Test | 145 lm/W |
| CCT (K) | 5000K 5-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 1770lm (1710lm ~ 1830lm) |
