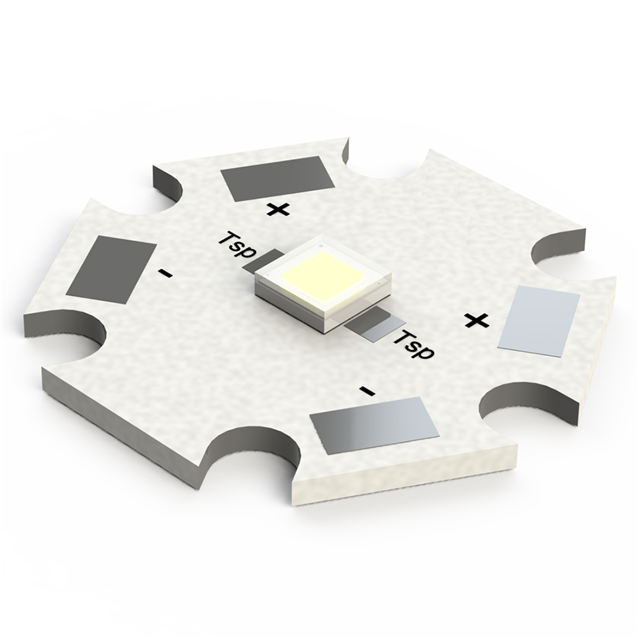

XHP35A-H0-0000-0D0BC230E-SB01
LED MOD XLAMP WHT STARBRD 3000KManufacturer: New Energy
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
New Energy Xlamp® XHP35 Series LED Module, part number XHP35A-H0-0000-0D0BC230E-SB01. This warm white LED module features a 3000K correlated color temperature with a 5-step MacAdam ellipse for tight color consistency. Delivering 458 lumens at 350mA test current, it achieves 116 lm/W. The module operates with a typical forward voltage of 11.3V and a maximum continuous current of 1.05A. Designed for demanding lighting applications, its 19.89mm diameter starboard configuration and 115° viewing angle make it suitable for general illumination, architectural lighting, and high-bay fixtures. Packaged in a tray.
Additional Information
Series: Xlamp® XHP35RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 19.89mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 11.3V |
| Height | - |
| Current - Test | 350mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 1.05A |
| Lumens/Watt @ Current - Test | 116 lm/W |
| CCT (K) | 3000K 5-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 458lm (440lm ~ 475lm) |
