XHP35A-0R-08-0D0BE240E
LED MOD XHP35A WHT RECT 4000KManufacturer: New Energy
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
New Energy XHP35A Series LED Module, part number XHP35A-0R-08-0D0BE240E. This white, neutral LED module features a rectangular light-emitting surface (LES) and a domed lens. It operates with a typical forward voltage of 45.2V and a maximum current of 2.1A, tested at 700mA. At the test conditions of 85°C and 700mA, it delivers a luminous flux of 4720 lumens (typical) and a luminous efficacy of 149 lumens per watt. The color temperature is 4000K, specified within a 5-step MacAdam ellipse, with a Color Rendering Index (CRI) of 70. This component is commonly utilized in general lighting applications. The module is supplied in a tray.
Additional Information
Series: XHP35ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 107.95mm L x 44.96mm W |
| Type | LED Module |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 45.2V |
| Height | - |
| Current - Test | 700mA |
| Viewing Angle | - |
| Lens Type | Domed |
| Current - Max | 2.1A |
| Lumens/Watt @ Current - Test | 149 lm/W |
| CCT (K) | 4000K 5-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 4720lm (Typ) |
Request a Quote
Clients Also Buy

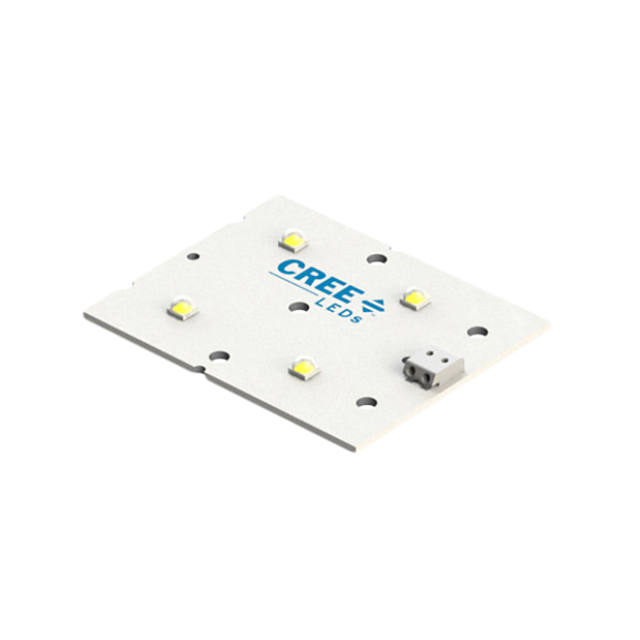

XHP35A-0R-04-0D0BD430E
