XHP35A-00-0000-0D0BD430E-SB01
LED MOD XLAMP WHT STARBRD 3000KManufacturer: New Energy
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

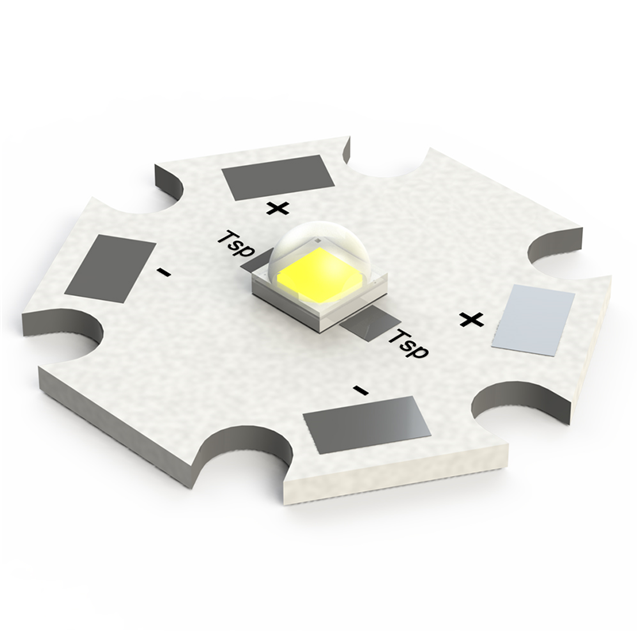

New Energy Xlamp® XHP35 Series LED Module, Part Number XHP35A-00-0000-0D0BD430E-SB01. This warm white LED module features a 3000K color temperature with a 5-step MacAdam ellipse binning for superior color consistency. Optimized for performance, it delivers 570 lumens (typical) at 350mA test current and 85°C. The module operates with a typical forward voltage of 11.3V and a maximum current of 1.05A, achieving 144 lm/W at the test conditions. Its flat, domed lens provides a wide 125° viewing angle. This LED module is commonly employed in architectural lighting, industrial illumination, and general lighting applications. Packaged in a tray.
Additional Information
Series: Xlamp® XHP35RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Warm |
| Wavelength | - |
| Size / Dimension | 19.89mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 11.3V |
| Height | - |
| Current - Test | 350mA |
| Viewing Angle | 125° |
| Lens Type | Domed |
| Current - Max | 1.05A |
| Lumens/Watt @ Current - Test | 144 lm/W |
| CCT (K) | 3000K 5-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 570lm (550lm ~ 590lm) |
Request a Quote
Clients Also Buy

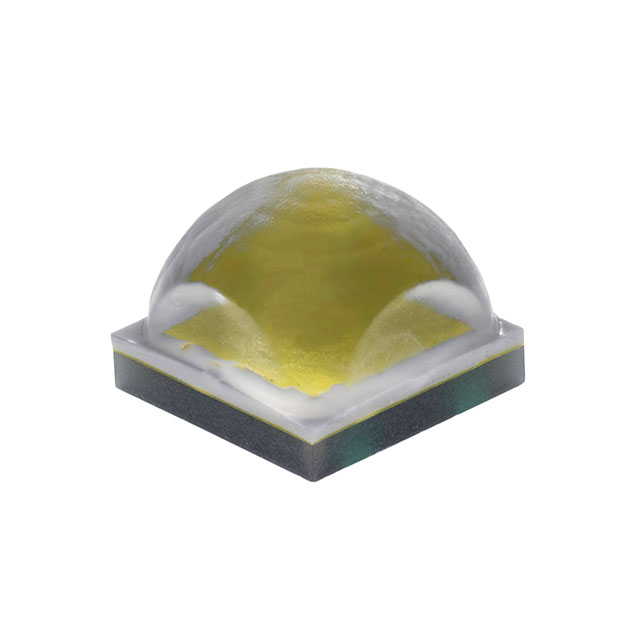

XHP35A-00-0000-0D00D20E5
