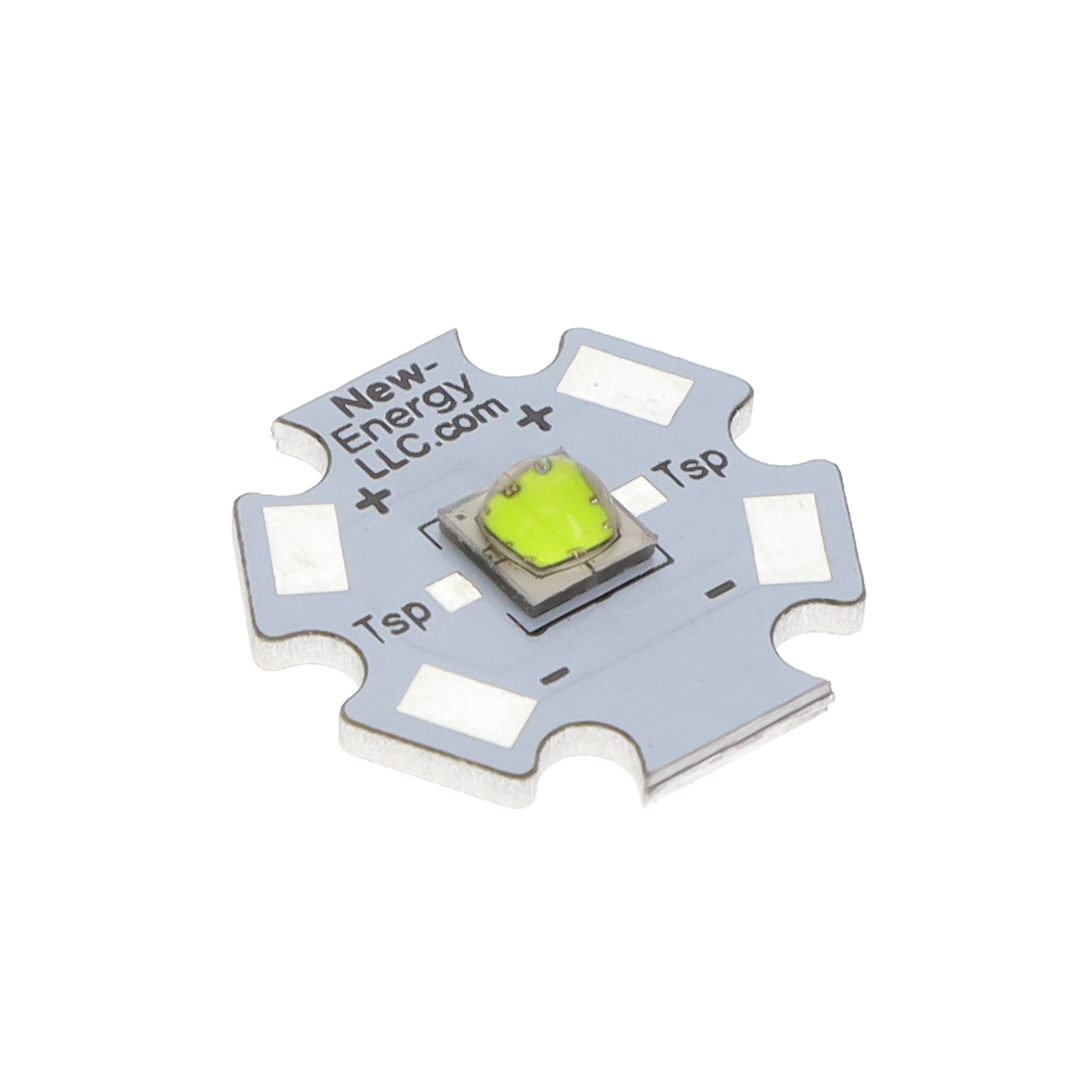

LST1-01G11-6570-01
LED MOD CL WH STARBOARD 6500KManufacturer: New Energy
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
LED Lighting COBs Engines Modules LED Module - White, Cool Starboard
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 19.89mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | - |
| Height | 1.70mm |
| Current - Test | 750mA |
| Viewing Angle | - |
| Lens Type | Domed |
| Current - Max | 2.625A |
| Lumens/Watt @ Current - Test | 113 lm/W |
| CCT (K) | 6500K |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | - |
| Luminous Flux @ Current/Temperature | 969lm (Typ) |
