LST1-01G06-UV01-01
LED MOD ULTRAVIOLET STARBOARDManufacturer: New Energy
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

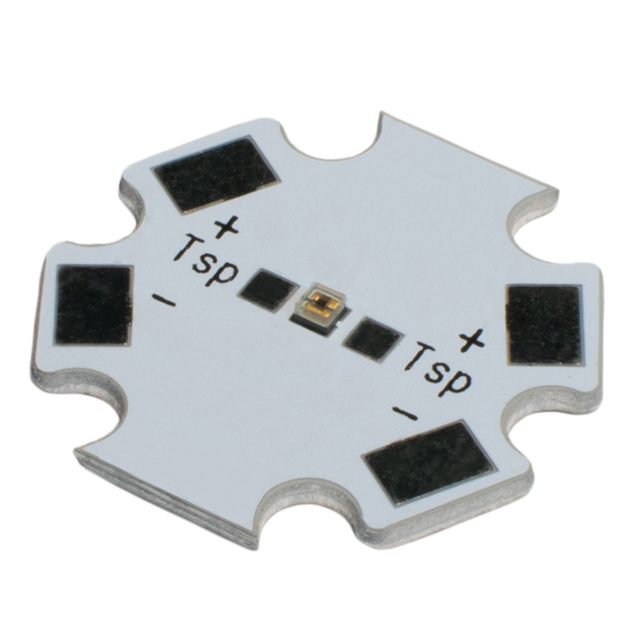

New Energy LST1 Series LED Module, part number LST1-01G06-UV01-01, is an UltraViolet Starboard configuration designed for high-performance lighting applications. This LED module operates with a typical forward voltage of 5.2V and a maximum forward current of 40mA, drawing 20mA under test conditions. It emits UV light with a peak wavelength of 283nm, featuring a broad 150° viewing angle. The module's dimensions are 19.89mm in diameter and 2.59mm in height. This component is commonly utilized in sterilization, curing, and analytical instrumentation industries. Packaging is provided in trays.
Additional Information
Series: LST1RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | UltraViolet |
| Wavelength | 283nm (280nm ~ 286nm) |
| Size / Dimension | 19.89mm Dia |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 5.2V |
| Height | 2.59mm |
| Current - Test | 20mA |
| Viewing Angle | 150° |
| Lens Type | Flat |
| Current - Max | 40mA |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 2.6mW (Typ) |
