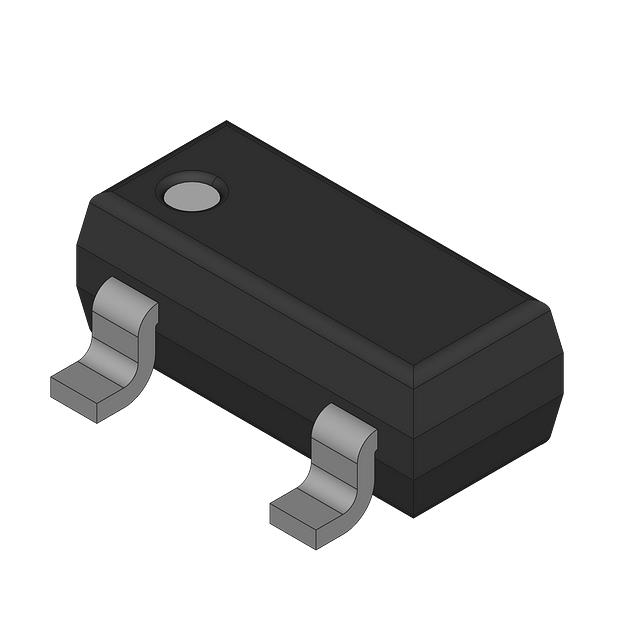

LM431BCM3-NS
TWO TERMINAL VOLTAGE REFERENCE,Manufacturer: National Semiconductor
Categories: Voltage Reference
Quality Control: Learn More
Shunt Voltage Reference IC Adjustable 2.495V 37 VV ±1% 100 mA SOT-23-3
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±1% |
| Packaging | Bulk |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Temperature Coefficient | 50ppm/°C Typical |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Voltage - Input | - |
| Reference Type | Shunt |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Current - Supply | - |
| Supplier Device Package | SOT-23-3 |
| Voltage - Output (Min/Fixed) | 2.495V |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Current - Cathode | 1 mA |
| Current - Output | 100 mA |
| Voltage - Output (Max) | 37 V |
