LM27CIM5X-1HJ/NOPB
LM27 TEMPERATURE SWITCH WITH FIXManufacturer: National Semiconductor
Categories: Thermostats - Solid State
Quality Control: Learn More

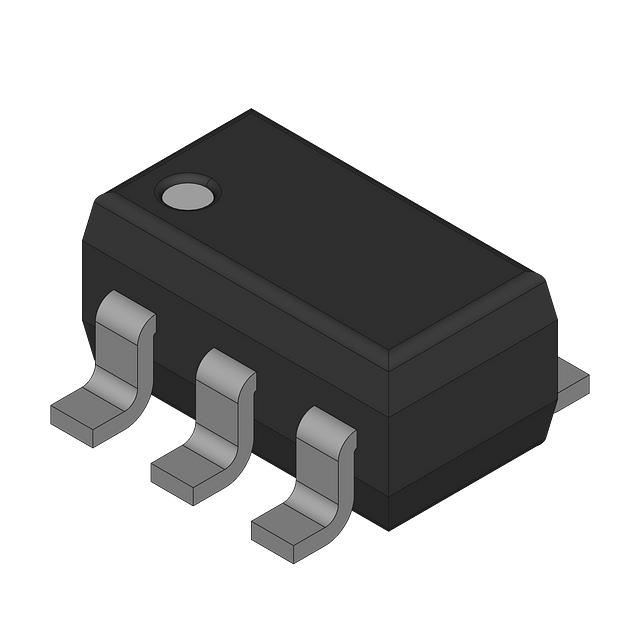

Thermostat 130°C Active Low Open Drain SOT-23-5
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | SC-74A, SOT-753 |
| Output Type | Open Drain |
| Mounting Type | Surface Mount |
| Output | Active Low |
| Accuracy | ±3°C |
| Operating Temperature | -40°C ~ 150°C |
| Current - Supply | 15µA |
| Switching Temperature | 130°C |
| Current - Output (Max) | - |
| Supplier Device Package | SOT-23-5 |
| Output Function | /OverTemp, VTemp |
| Trip Temperature Threshold | Hot |
| Selectable Hysteresis | Yes |
| Voltage - Supply | 2.7 V ~ 5.5 V |
