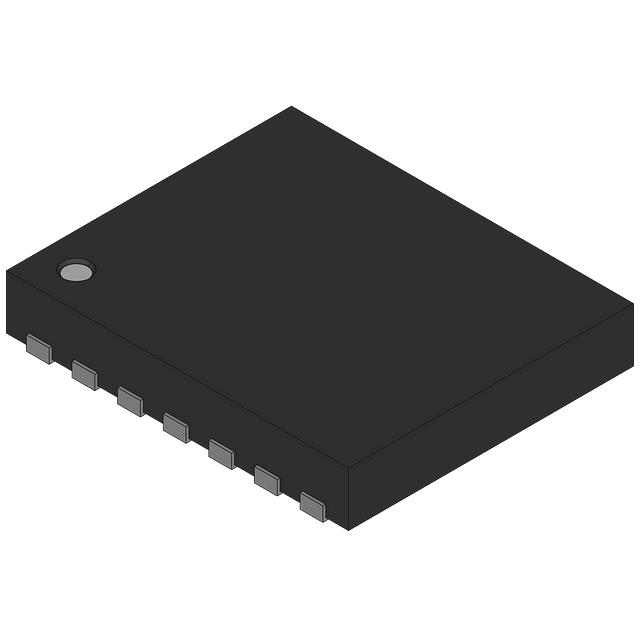

LM2676LD-3.3
IC REG BUCK 3.3V 3A 14VSONManufacturer: National Semiconductor
Categories: DC DC Switching Regulators
Quality Control: Learn More
The National Semiconductor SIMPLE SWITCHER® LM2676LD-3-3 is a 3A, 3.3V fixed output voltage buck switching regulator in a 14-VSON (6x5) package. This device features a high switching frequency of 260kHz, enabling smaller component sizes and efficient power conversion. Designed for step-down applications, it offers a single positive fixed output voltage and requires no external synchronous rectifier. With an input voltage range of 8V to 40V and an output current capability of 3A, the LM2676LD-3-3 is suitable for demanding power supply designs in industrial control, medical equipment, and telecommunications infrastructure. The exposed pad on the 14-VDFN package enhances thermal performance. This component operates across a wide temperature range of -40°C to 125°C (TJ).
Additional Information
Series: SIMPLE SWITCHER®RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-VDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 260kHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck |
| Supplier Device Package | 14-VSON (6x5) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 8V |
| Voltage - Output (Min/Fixed) | 3.3V |
