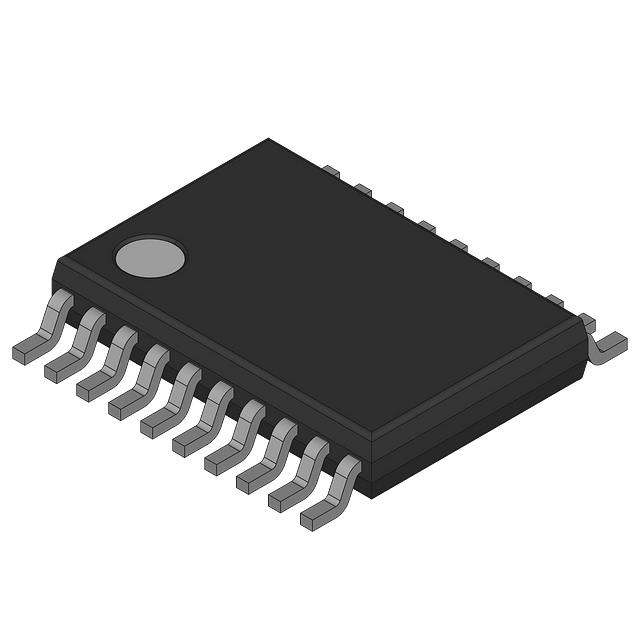

LM5034MTC-NS
SWITCHING CONTROLLER, CURRENT-MOManufacturer: National Semiconductor
Categories: DC DC Switching Controllers
Quality Control: Learn More
Forward Converter Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 20-TSSOP
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | 200kHz, 600kHz |
| Topology | Forward Converter |
| Voltage - Supply (Vcc/Vdd) | 13V ~ 100V |
| Supplier Device Package | 20-TSSOP |
| Synchronous Rectifier | Yes |
| Control Features | Frequency Control, Soft Start |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 76% |
| Clock Sync | Yes |
| Number of Outputs | 2 |
