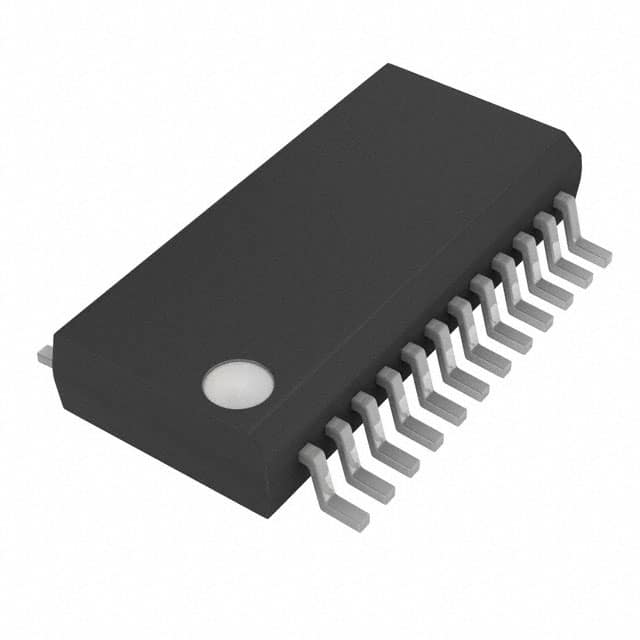

CDCF5801ADBQ
CDCF5801A LOW-JITTER PLL-BASED MManufacturer: National Semiconductor
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
PLL Multiplier/Divider IC 280MHz 1 24-SSOP (0.154"", 3.90mm Width)
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 24-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Output | HSTL, LVDS, LVPECL, LVTTL, SSTL |
| Frequency - Max | 280MHz |
| Type | PLL Multiplier/Divider |
| Input | HSTL, LVPECL, LVTTL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 24-SSOP |
| PLL | Yes |
| Divider/Multiplier | Yes/Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
