ADC14L020CIVY/NOPB
ADC14L020 14-BIT, 20-MSPS ANALOGManufacturer: National Semiconductor
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

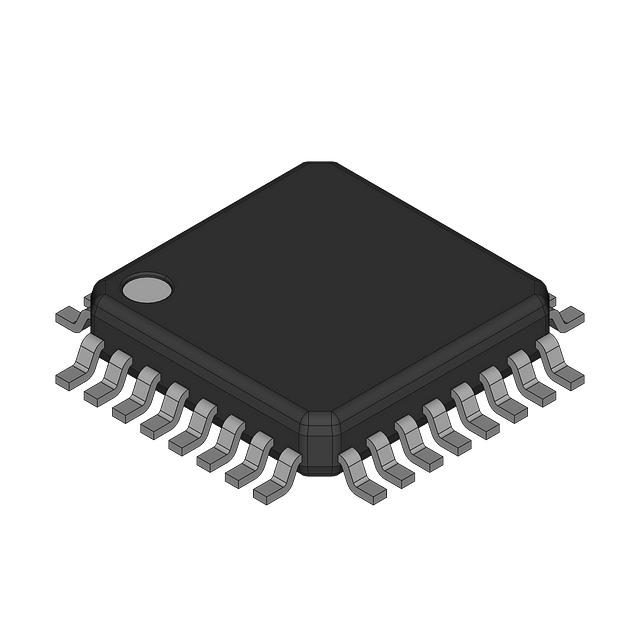

14 Bit Analog to Digital Converter 1 Input 1 Pipelined 32-TQFP (7x7)
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 32-LQFP |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Sampling Rate (Per Second) | 20M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 32-TQFP (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
