DR4001
RF TX IC ASK/OOK 868.35MHZ MODManufacturer: Murata Electronics
Categories: RF Transmitters
Quality Control: Learn More

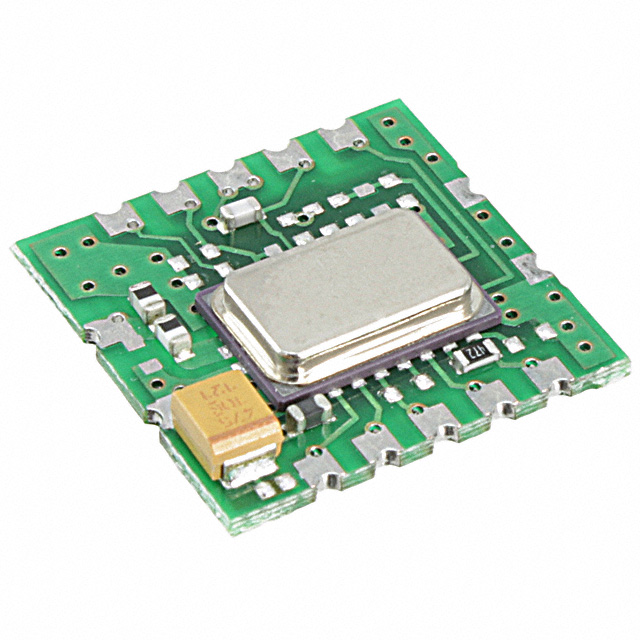

Murata Electronics DR4001 is an RF transmitter module operating at 868.35MHz, utilizing ASK and OOK modulation. This compact module is designed for PCB surface mount integration, offering a convenient solution for wireless data transmission. The DR4001 supports data rates up to 115.2kbps and delivers an output power of -1dBm. It operates within a supply voltage range of 2.7V to 3.5V and draws a transmit current of 12mA. Its robust design makes it suitable for general-purpose applications across various industries, including industrial automation and smart home systems, where reliable short-range wireless communication is essential. The module features pads for pin connections and is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Surface Mount |
| Frequency | 868.35MHz |
| Memory Size | - |
| Modulation or Protocol | ASK, OOK |
| Data Interface | Pads for Pins |
| Operating Temperature | -20°C ~ 65°C |
| Voltage - Supply | 2.7V ~ 3.5V |
| Power - Output | -1dBm |
| Applications | General Purpose |
| Data Rate (Max) | 115.2kbps |
| Current - Transmitting | 12mA |
| Antenna Connector | PCB, Surface Mount |
| Supplier Device Package | Module |
| Programmable | Not Verified |
