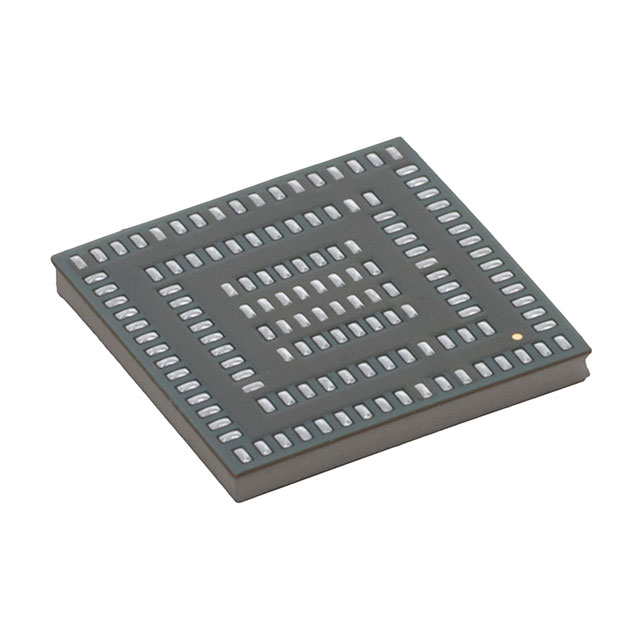

LBWA1UZ1GC-958
RF TXRX MODULE WIFI SMDManufacturer: Murata Electronics
Categories: RF Transceiver Modules and Modems
Quality Control: Learn More
Murata Electronics LBWA1UZ1GC-958 is a surface mount WiFi transceiver module supporting 802.11a/b/g/n standards. Operating across the 2.4GHz to 5.825GHz frequency range, this component offers data rates up to 150Mbps. Modulation schemes include CCK, DSSS, and OFDM. Key interfaces for integration are I2C, SPI, UART, and USB. The module operates at a 3.3V supply voltage, drawing 100mA during reception and 380mA when transmitting. Transmit power is rated at 12dBm, with a receive sensitivity of -90dBm. This module is suitable for applications in consumer electronics and industrial automation. It is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 43 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Module |
| Sensitivity | -90dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.4GHz ~ 5.825GHz |
| Memory Size | - |
| Operating Temperature | -30°C ~ 85°C |
| Voltage - Supply | 3.3V |
| Power - Output | 12dBm |
| Data Rate | 150Mbps |
| Protocol | 802.11a/b/g/n |
| Current - Receiving | 100mA |
| Current - Transmitting | 380mA |
| Antenna Type | - |
| Utilized IC / Part | CYW43907 |
| Modulation | CCK, DSSS, OFDM |
| RF Family/Standard | WiFi |
| Serial Interfaces | I2C, SPI, UART, USB |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
LBEE5ZZ1PJ-377
RF TXRX MOD BLUETOOTH WIFISMD

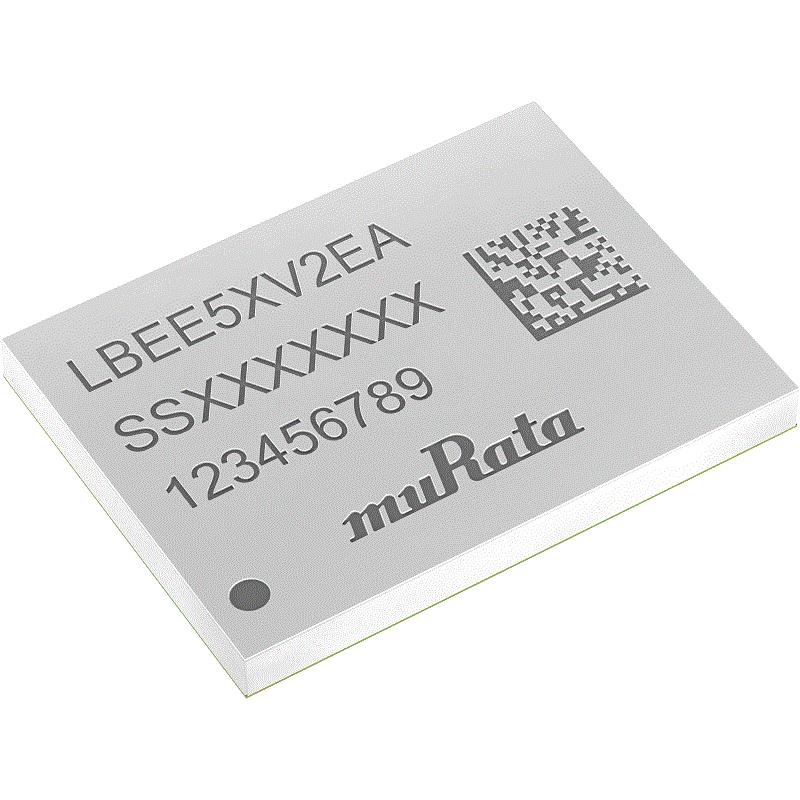

LBEE5XV2EA-802
RF TXRX MOD BLUETOOTH WIFISMD

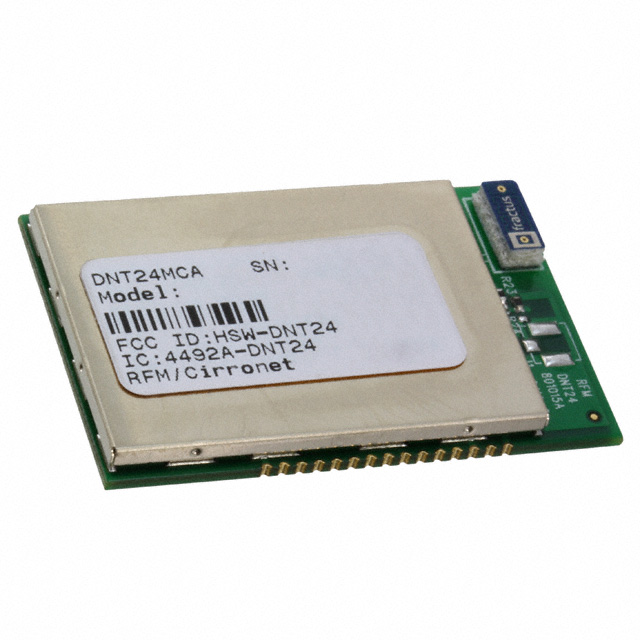

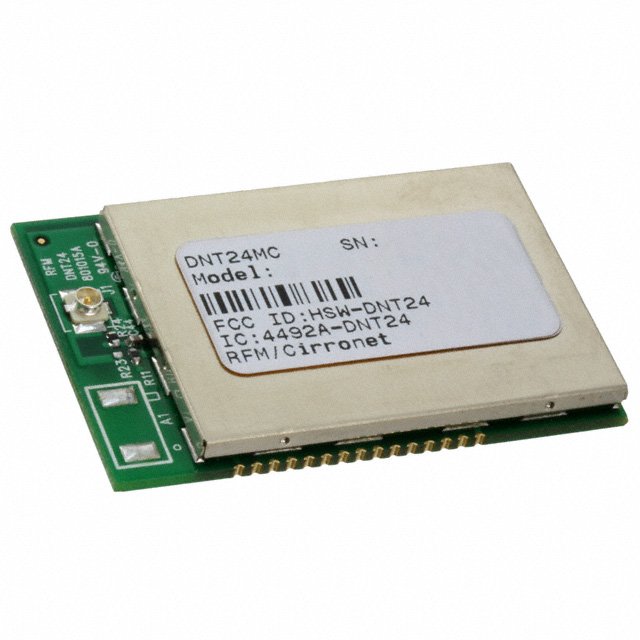

DNT24MCA
