ZPA4756-0311A-R
PRESSURE SENSOR 300-1100HPA SPSSManufacturer: Murata Electronics
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

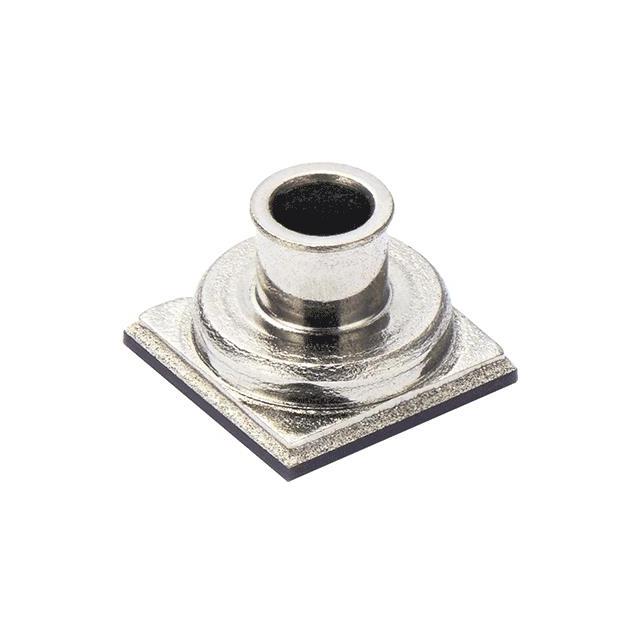

Murata Electronics ZPA4756-0311A-R is an absolute pressure sensor module designed for precise pressure measurement. This 8-SMD module operates within a pressure range of 30kPa to 110kPa (approximately 4.35PSI to 15.95PSI) and offers a 24-bit digital output. The device boasts an impressive accuracy of ±0.04%, ensuring reliable data for critical applications. It is suitable for a wide operating temperature range of -40°C to 85°C. The ZPA4756-0311A-R is surface-mountable and supplied on a tape and reel for automated assembly. Its capabilities make it well-suited for demanding environments, particularly within industrial automation. The sensor operates from a supply voltage of 1.7V to 3.6V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD Module |
| Output Type | Digital |
| Mounting Type | Surface Mount |
| Output | 24 b |
| Operating Pressure | 4.35PSI ~ 15.95PSI (30kPa ~ 110kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.04% |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | - |
| Voltage - Supply | 1.7V ~ 3.6V |
| Port Size | - |
| Applications | Industrial Automation |
| Supplier Device Package | Module |
| Port Style | No Port |
| Maximum Pressure | - |
Request a Quote
Clients Also Buy
ZPA2326-0311A-R1
BAROMETRIC PRESSURE SENSOR

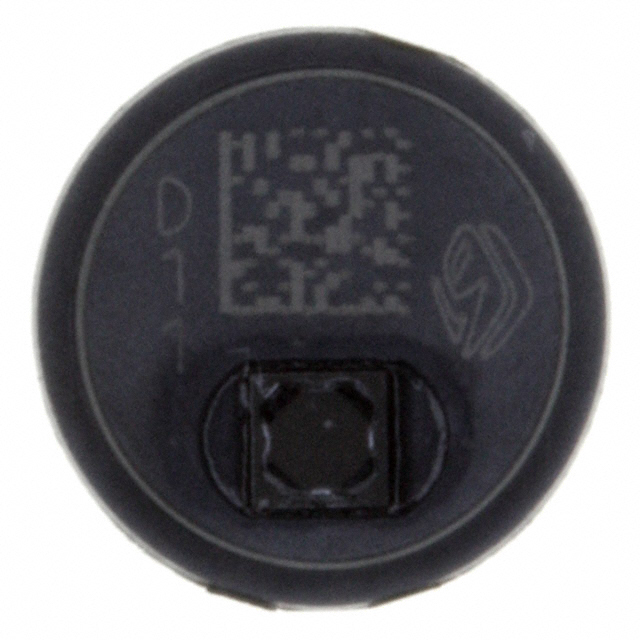

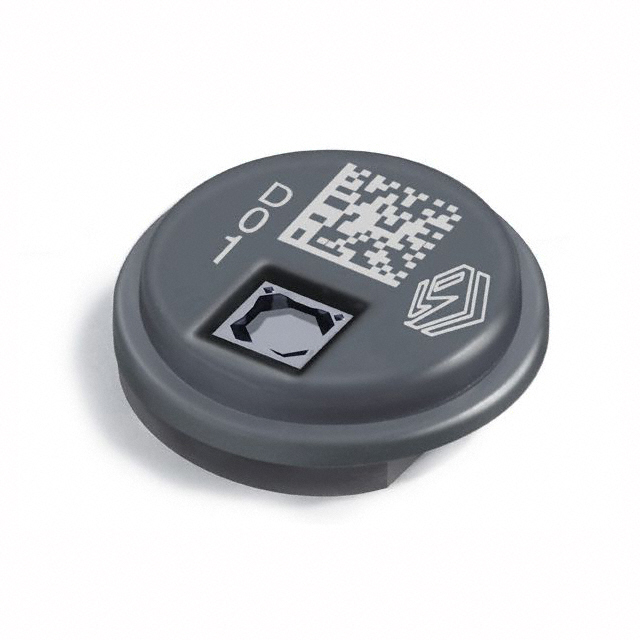

SCP1000-D01
