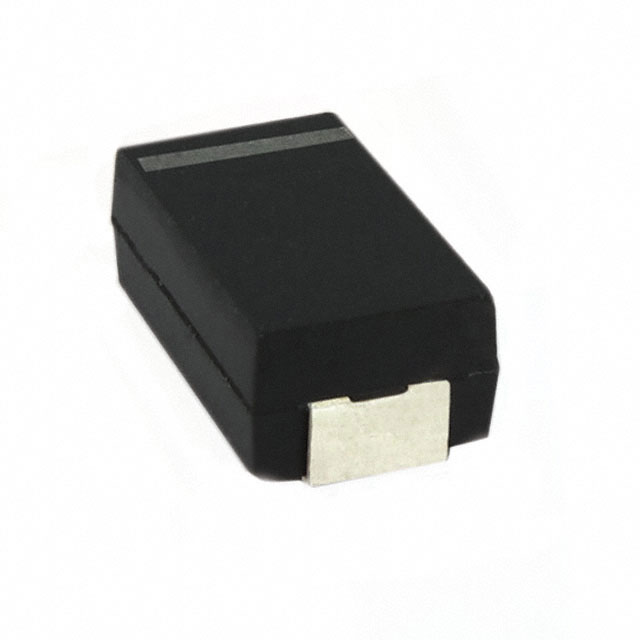

ECASD31A686M040KA0
CAP ALUM POLY 68UF 20% 10V SMDManufacturer: Murata Electronics
Categories: Polymer Capacitors
Quality Control: Learn More
68 µF 10 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 40mOhm 1000 Hrs @ 105°C
Additional Information
Series: ECASRoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension | 0.287"" L x 0.169"" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Type | Polymer |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Surface Mount Land Size | 0.287"" L x 0.169"" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.059"" (1.50mm) |
| Capacitance | 68 µF |
| Voltage - Rated | 10 V |
| Ripple Current @ High Frequency | 1.6 A @ 100 kHz |
