XNCLH26M000THJA2P0
XTAL OSC TCXO 26.0000MHZ SNWVManufacturer: Murata Electronics
Categories: Oscillators
Quality Control: Learn More
Murata Electronics XNCLH series TCXO, part number XNCLH26M000THJA2P0, offers a precise 26 MHz frequency output with a clipped sine wave. This temperature-compensated crystal oscillator features a frequency stability of ±200ppb across an operating temperature range of -40°C to 85°C. Designed for surface mount applications, it is housed in an 8-SMD, No Lead package with dimensions of 0.197" L x 0.126" W (5.00mm x 3.20mm) and a maximum seated height of 0.059" (1.50mm). The device operates from a 3V supply and draws a maximum current of 2.6mA. This component is suitable for applications in telecommunications, industrial automation, and consumer electronics. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: XNCLHRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, No Lead |
| Size / Dimension | 0.197"" L x 0.126"" W (5.00mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Output | Clipped Sine Wave |
| Function | - |
| Type | TCXO |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±200ppb |
| Voltage - Supply | 3V |
| Ratings | - |
| Current - Supply (Max) | 2.6mA |
| Height - Seated (Max) | 0.059"" (1.50mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 26 MHz |
| Base Resonator | Crystal |
Request a Quote
Clients Also Buy

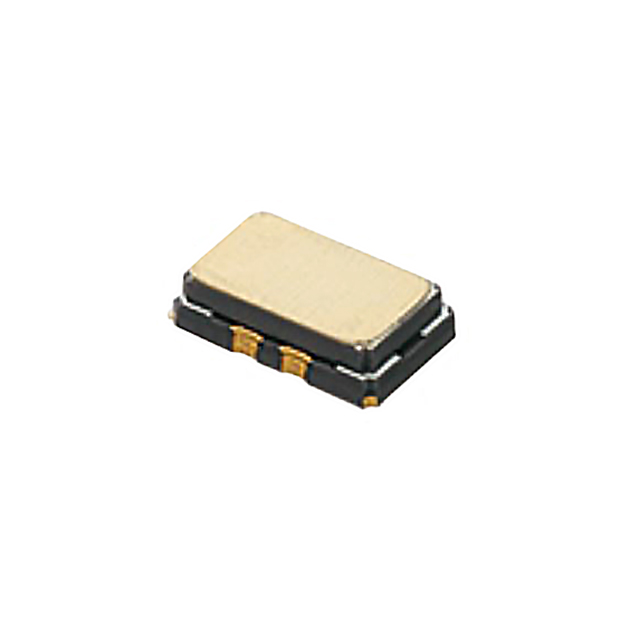

XTCLH25M000THJA0P0
