NXRT15WB473FA3A016
THERMISTOR NTC 47KOHM 4050K BEADManufacturer: Murata Electronics
Categories: NTC Thermistors
Quality Control: Learn More
Murata Electronics NXR Series NXRT15WB473FA3A016 is an NTC thermistor with a nominal resistance of 47 kOhms at 25°C and a B25/50 value of 4050K. This component features a ±1% resistance tolerance and ±1% B value tolerance. Designed for precise temperature sensing, it operates within a -40°C to 125°C temperature range and has a maximum power dissipation of 7.5 mW. The bead-style package is suitable for through-hole mounting. This NTC thermistor finds application in automotive, industrial, and consumer electronics for temperature monitoring and compensation. It is supplied in Cut Tape (CT) packaging.
Additional Information
Series: NXRRoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: Not For New DesignsPackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | Bead |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 125°C |
| B0/50 | - |
| B25/50 | 4050K |
| B25/85 | 4108K |
| B25/100 | 4131K |
| B Value Tolerance | ±1% |
| Resistance in Ohms @ 25°C | 47k |
| Resistance Tolerance | ±1% |
| B25/75 | - |
| Length - Lead Wire | - |
| Power - Max | 7.5 mW |
Request a Quote
Clients Also Buy

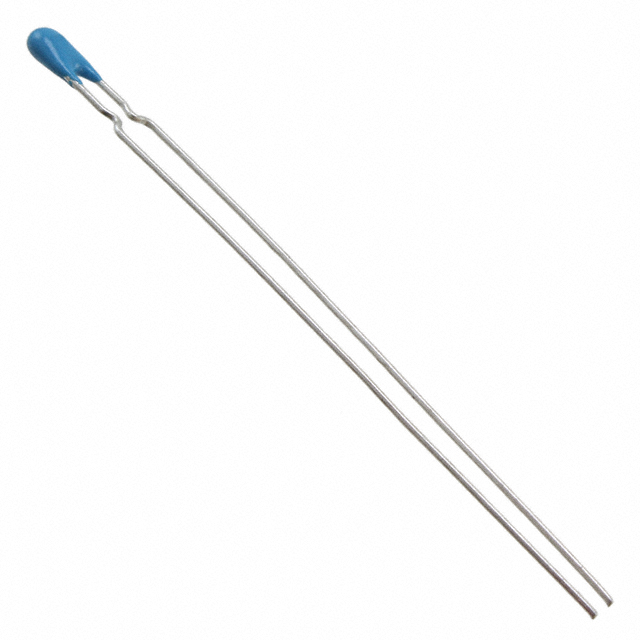

NXRT15WB333JA1B010
