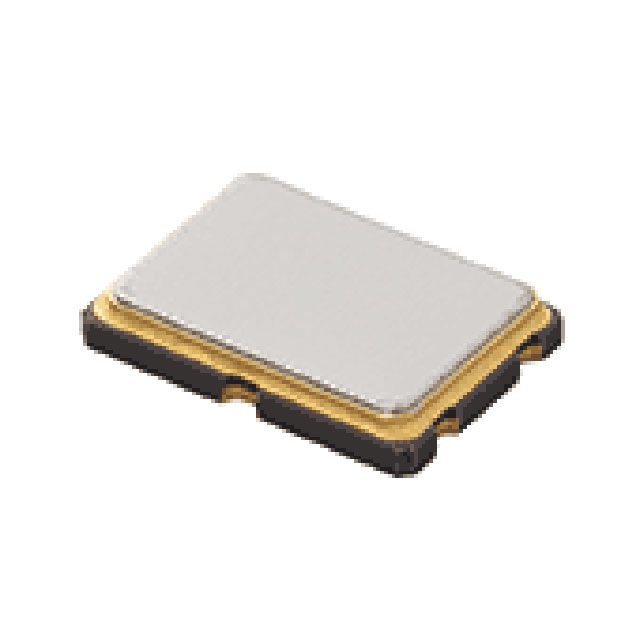

XDCAF21M400RAA00P0
MONOLITHIC CRYSTAL FILTER 21.4MHManufacturer: Murata Electronics
Categories: Monolithic Crystals
Quality Control: Learn More
Murata Electronics XDCAF series monolithic crystal filter, part number XDCAF21M400RAA00P0. This 21.4 MHz center frequency filter features a 7.5 kHz bandwidth and a 1.5 kOhms impedance. Designed for surface mount applications, it offers a maximum insertion loss of 2dB and a ripple of 1dB. The filter operates within a temperature range of -20°C to 70°C. Its dimensions are 7.00mm L x 5.00mm W with a height of 1.25mm. The component is supplied in a 6-SMD, No Lead package, presented on tape and reel. This device is commonly utilized in communication systems and signal processing applications.
Additional Information
Series: XDCAFRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.276"" L x 0.197"" W (7.00mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -20°C ~ 70°C |
| Insertion Loss | 2dB |
| Ripple | 1dB |
| Height (Max) | 0.049"" (1.25mm) |
| Impedance | 1.5 kOhms |
| Frequency - Center | 21.4 MHz |
| Bandwidth | 7.5 kHz |
| Number of Poles | 2 |
