CT310LS-ID8-M
TMR SENSOR: 8-LEAD DFN (2.0 X 2.Manufacturer: Murata Electronics
Categories: Linear, Compass (ICs)
Quality Control: Learn More
Murata Electronics CT310LS-ID8-M, part of the CT310 series, is an analog voltage output TMR sensor designed for X and Y axis magnetic field detection. This component features an 8-lead DFN package with an exposed pad, measuring 2.0 x 2.0 mm, suitable for surface mounting. The CT310LS-ID8-M operates with a supply voltage range of 1V to 5.5V and a sensing range of 20mT to 80mT. It is engineered for reliable operation across an ambient temperature range of -40°C to 85°C. This device finds application in automotive systems, industrial automation, and consumer electronics, supporting precise magnetic field measurement. The component is supplied on tape and reel.
Additional Information
Series: CT310RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-XFDFN Exposed Pad |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Axis | X, Y |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1V ~ 5.5V |
| Bandwidth | - |
| Technology | - |
| Resolution | - |
| Sensing Range | 20mT ~ 80mT |
| Current - Output (Max) | - |
| Current - Supply (Max) | - |
| Supplier Device Package | 8-DFN (2x2) |
Request a Quote
Clients Also Buy

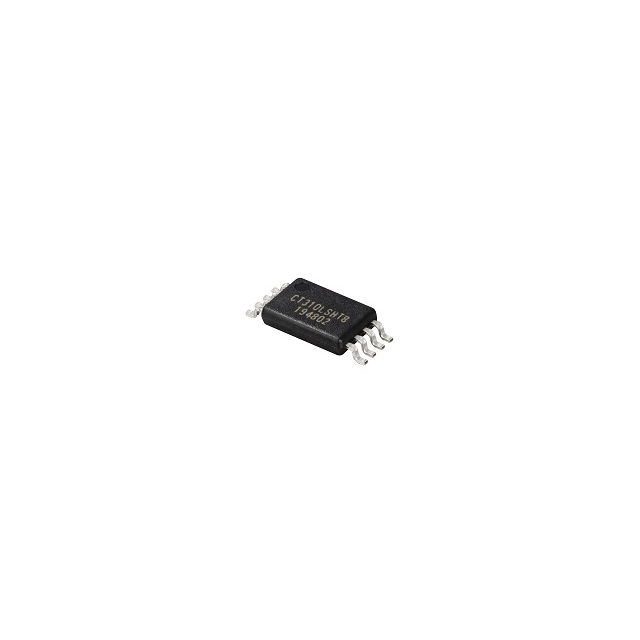

CT310LS-HD8-M
