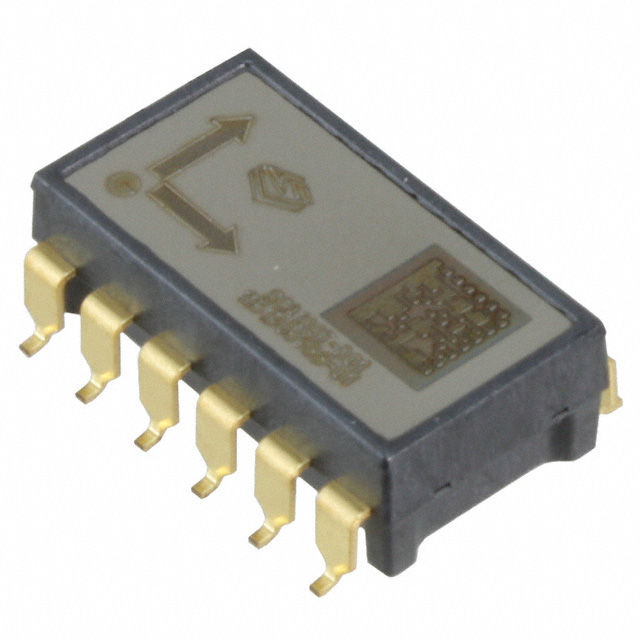

SCA100T-D01-1
SENSOR INCLINOMETER 30DEG 12SMDManufacturer: Murata Electronics
Categories: Inclinometers
Quality Control: Learn More
Murata Electronics SCA100T-D01-1 is an inclinometer sensor designed for precise angle measurement. This component provides ±30° measurement range across the X and Y axes, with a selectable bandwidth of 8 to 28Hz, enabling flexible performance tuning for dynamic applications. Utilizing an SPI interface for efficient data transfer, the SCA100T-D01-1 outputs analog voltage signals with a sensitivity of 4V/g. It operates within a voltage range of 4.75 V to 5.25 V and maintains functionality across an extended temperature range of -40°C to 125°C. The sensor is housed in a 12-SMD, L-Bend package, supplied on tape and reel for automated assembly processes. This inclinometer is suitable for applications in industrial automation, automotive systems, and mobile platforms requiring accurate tilt and inclination monitoring.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-SMD, L-Bend |
| Output Type | Voltage |
| Sensitivity | 4V/g |
| Interface | SPI |
| Axis | X, Y |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Bandwidth | 8 ~ 28Hz |
| Measuring Range | ±30° |
| Voltage Rating | 4.75 V ~ 5.25 V |
Request a Quote
Clients Also Buy

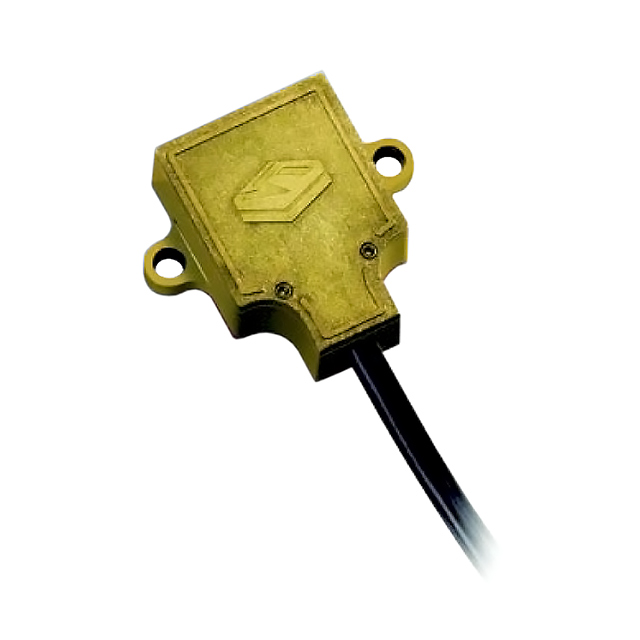

SCA115T-D03-A
SENSOR INCLINOMETER 30DEG MODULE

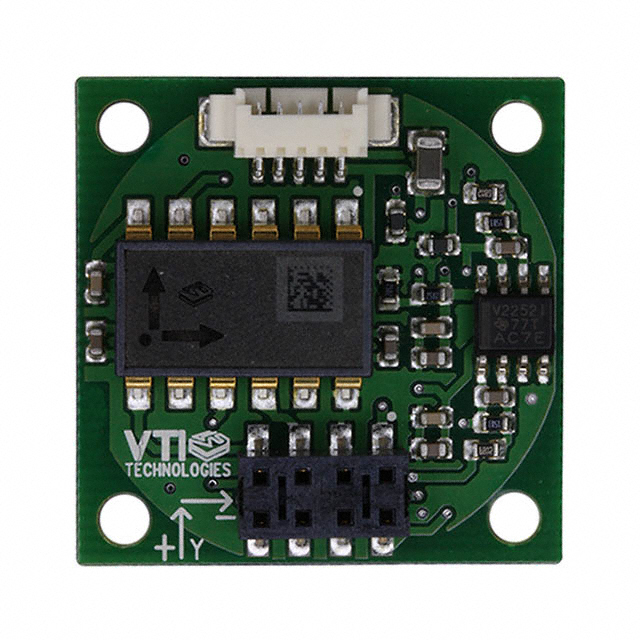

SCL1700-D31
SENSOR INCLINOMETER 10DEG MODULE

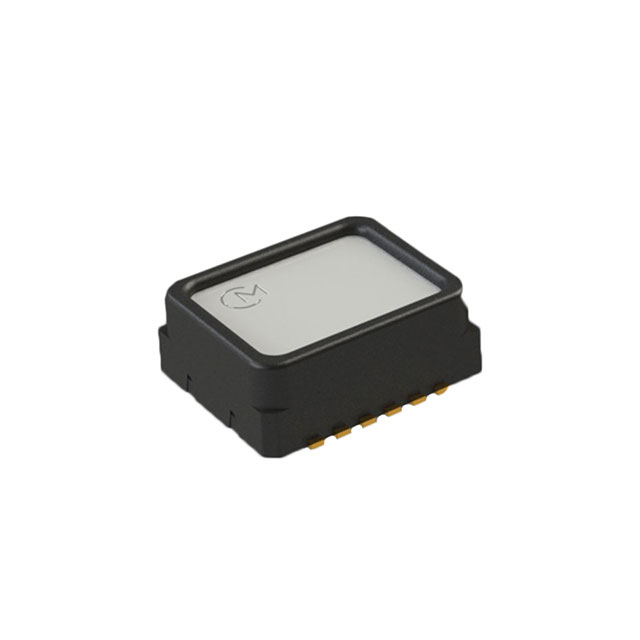

SCL3300-D01-10
