MDH7045C-6R8NB=P3
FIXED IND 6.8UH 2.8A 22MOHM SMDManufacturer: Murata Electronics
Categories: Fixed Inductors
Quality Control: Learn More
6.8 µH Shielded Drum Core, Wirewound Inductor 2.8 A 22mOhm Nonstandard
Additional Information
Series: MDH7045CRoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±30% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.291"" L x 0.276"" W (7.40mm x 7.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -55°C ~ 150°C |
| DC Resistance (DCR) | 22mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 3.4A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.189"" (4.80mm) |
| Inductance | 6.8 µH |
| Current Rating (Amps) | 2.8 A |
Request a Quote
Clients Also Buy
MDH7045C-470MA=P3
FIXED IND 47UH 1.1A 130MOHM SMD

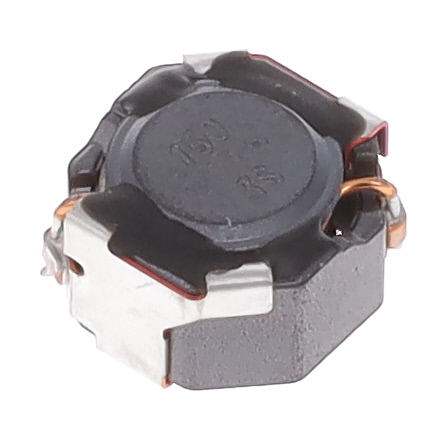

MDH7045C-101MA=P3
