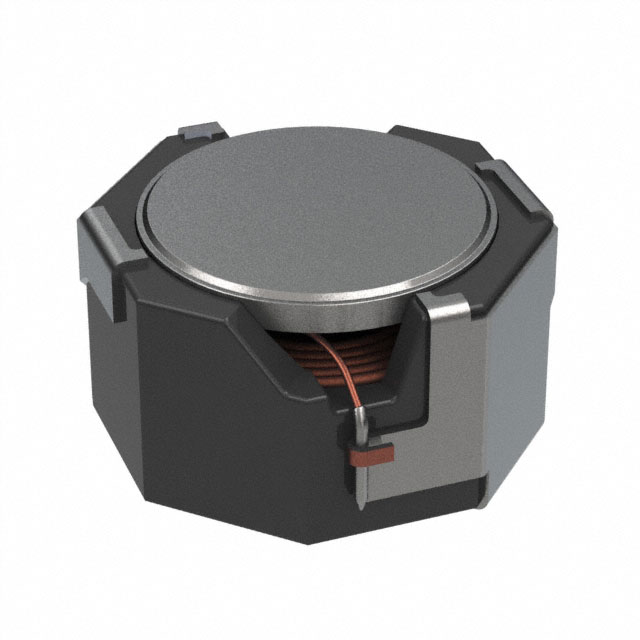

MDH12577C-221MA=P3
FIXED IND 220UH 1.1A 250MOHM SMDManufacturer: Murata Electronics
Categories: Fixed Inductors
Quality Control: Learn More
220 µH Unshielded Drum Core, Wirewound Inductor 1.1 A 250mOhm Nonstandard
Additional Information
Series: MDH12577CRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.504"" L x 0.492"" W (12.80mm x 12.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -55°C ~ 150°C |
| DC Resistance (DCR) | 250mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 1.5A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.315"" (8.00mm) |
| Inductance | 220 µH |
| Current Rating (Amps) | 1.1 A |
