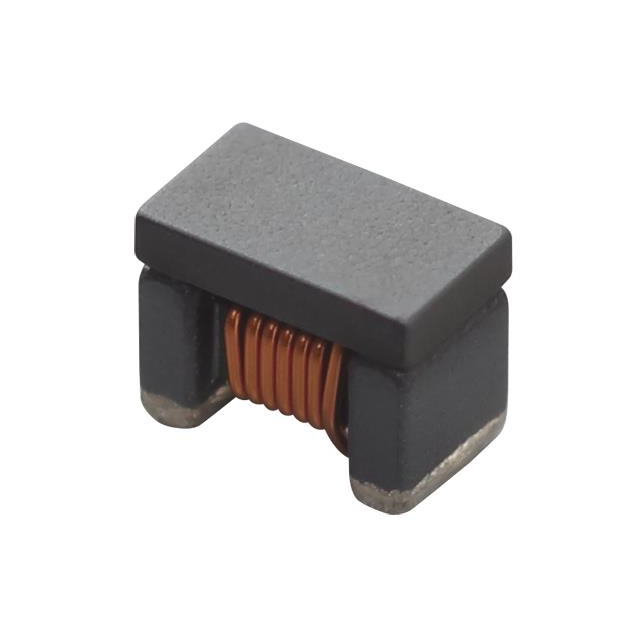

LQW21FTR47M0HL
FIXED IND 0.47UH 1100MA POWRTRNManufacturer: Murata Electronics
Categories: Fixed Inductors
Quality Control: Learn More
470 nH Shielded Drum Core, Wirewound Inductor 900 mA 50mOhm Max 0805 (2012 Metric)
Additional Information
Series: LQW21RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.079"" L x 0.047"" W (2.00mm x 1.20mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 50mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 470MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 1A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 1 MHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.071"" (1.80mm) |
| Inductance | 470 nH |
| Current Rating (Amps) | 900 mA |
