LQP15MN5N6B02D
FIXED IND 5.6NH 140MA 700MOHM SMManufacturer: Murata Electronics
Categories: Fixed Inductors
Quality Control: Learn More
Murata Electronics LQP15 series fixed inductor, part number LQP15MN5N6B02D, offers a 5.6 nH inductance with a tight tolerance of ±0.1 nH. This unshielded, thick film component is designed for surface mount applications in an 0402 (1005 Metric) package. It features a current rating of 140 mA and a maximum DC resistance of 700 mOhm. The LQP15MN5N6B02D exhibits a Q factor of 13 at 500 MHz and a self-resonant frequency of 6 GHz, making it suitable for RF applications in wireless communications and consumer electronics. The component's dimensions are 0.039" L x 0.020" W (1.00mm x 0.50mm) with a maximum seated height of 0.018" (0.45mm). It operates within a temperature range of -40°C to 85°C and is supplied on tape and reel.
Additional Information
Series: LQP15RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±0.1nH |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension | 0.039"" L x 0.020"" W (1.00mm x 0.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Thick Film |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) | 700mOhm Max |
| Q @ Freq | 13 @ 500MHz |
| Frequency - Self Resonant | 6GHz |
| Ratings | - |
| Current - Saturation (Isat) | - |
| Material - Core | Non-Magnetic |
| Inductance Frequency - Test | 500 MHz |
| Supplier Device Package | 0402 (1005 Metric) |
| Height - Seated (Max) | 0.018"" (0.45mm) |
| Inductance | 5.6 nH |
| Current Rating (Amps) | 140 mA |
Request a Quote
Clients Also Buy

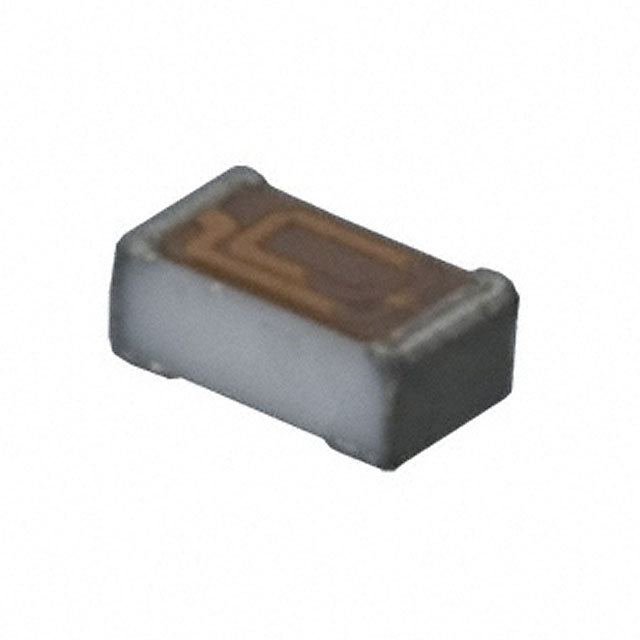

LQP15MN2N2W02D
FIXED IND 2.2NH 220MA 300MOHM SM
LQH55DN101M03L
FIXED IND 100UH 560MA 1.2OHM SMD

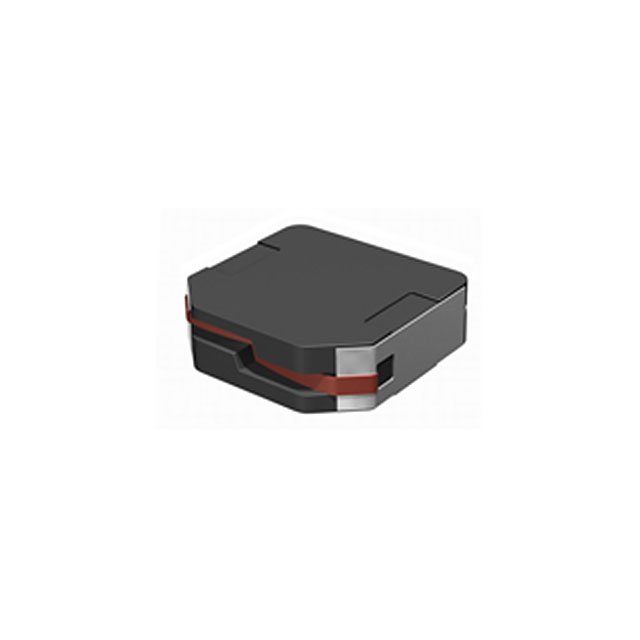

1225AS-H-120M=P2
