LQP03TN5N6H02D
FIXED IND 5.6NH 350MA 400MOHM SMManufacturer: Murata Electronics
Categories: Fixed Inductors
Quality Control: Learn More
5.6 nH Unshielded Thick Film Inductor 350 mA 400mOhm Max 0201 (0603 Metric)
Additional Information
Series: LQP03RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±3% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0201 (0603 Metric) |
| Size / Dimension | 0.024"" L x 0.012"" W (0.60mm x 0.30mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Thick Film |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 400mOhm Max |
| Q @ Freq | 14 @ 500MHz |
| Frequency - Self Resonant | 4GHz |
| Ratings | - |
| Current - Saturation (Isat) | - |
| Material - Core | Non-Magnetic |
| Inductance Frequency - Test | 500 MHz |
| Supplier Device Package | 0201 (0603 Metric) |
| Height - Seated (Max) | 0.013"" (0.33mm) |
| Inductance | 5.6 nH |
| Current Rating (Amps) | 350 mA |
Request a Quote
Clients Also Buy

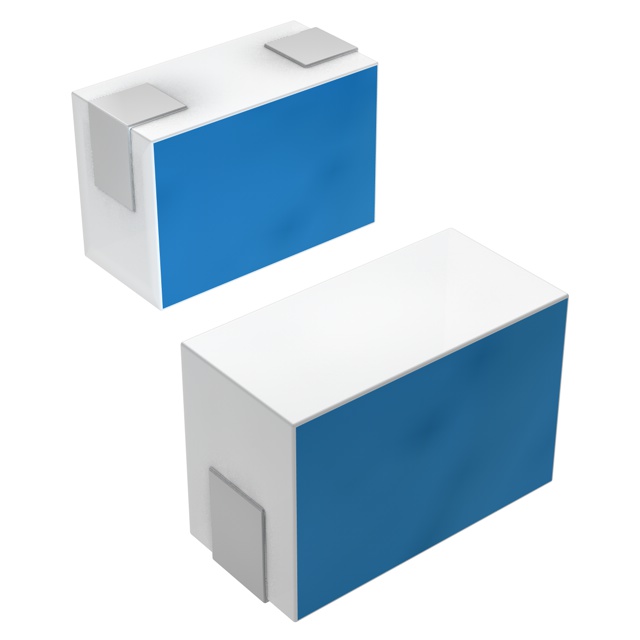

LQP03HQ27NH02D
