LQM31PN1R0M00L
FIXED IND 1UH 1.2A 150 MOHM SMDManufacturer: Murata Electronics
Categories: Fixed Inductors
Quality Control: Learn More

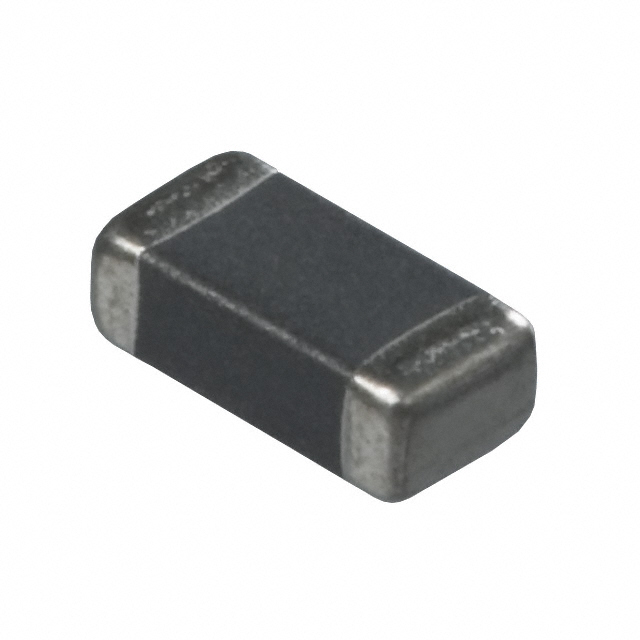

1 µH Shielded Multilayer Inductor 1.2 A 150mOhm Max 1206 (3216 Metric)
Additional Information
Series: LQM31RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.126"" L x 0.063"" W (3.20mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Multilayer |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 150mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 60MHz |
| Ratings | - |
| Current - Saturation (Isat) | - |
| Material - Core | - |
| Inductance Frequency - Test | 1 MHz |
| Supplier Device Package | 1206 |
| Height - Seated (Max) | 0.037"" (0.95mm) |
| Inductance | 1 µH |
| Current Rating (Amps) | 1.2 A |
Request a Quote
