LQH55DN4R7M03L
FIXED IND 4.7UH 2.7A 57.4MOHM SMManufacturer: Murata Electronics
Categories: Fixed Inductors
Quality Control: Learn More
Murata Electronics' LQH55 series offers a 4.7 µH unshielded wirewound drum core inductor. This component, part number LQH55DN4R7M03L, features a surface mount design with a 2220 (5750 Metric) package. It is rated for a continuous current of 2.7 A and exhibits a maximum DC resistance of 57.4 mOhm at 1 MHz. The inductance tolerance is ±20%. Designed for demanding applications, this inductor operates within a temperature range of -40°C to 80°C and has a self-resonant frequency of 30 MHz. Its dimensions are 0.224" long by 0.197" wide. This component is commonly utilized in automotive, industrial, and consumer electronics power management circuits. It is supplied on tape & reel (TR).
Additional Information
Series: LQH55RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2220 (5750 Metric) |
| Size / Dimension | 0.224"" L x 0.197"" W (5.70mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 80°C |
| DC Resistance (DCR) | 57.4mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 30MHz |
| Ratings | - |
| Current - Saturation (Isat) | - |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 1 MHz |
| Supplier Device Package | 2220 (5650 Metric) |
| Height - Seated (Max) | 0.197"" (5.00mm) |
| Inductance | 4.7 µH |
| Current Rating (Amps) | 2.7 A |
Request a Quote
Clients Also Buy

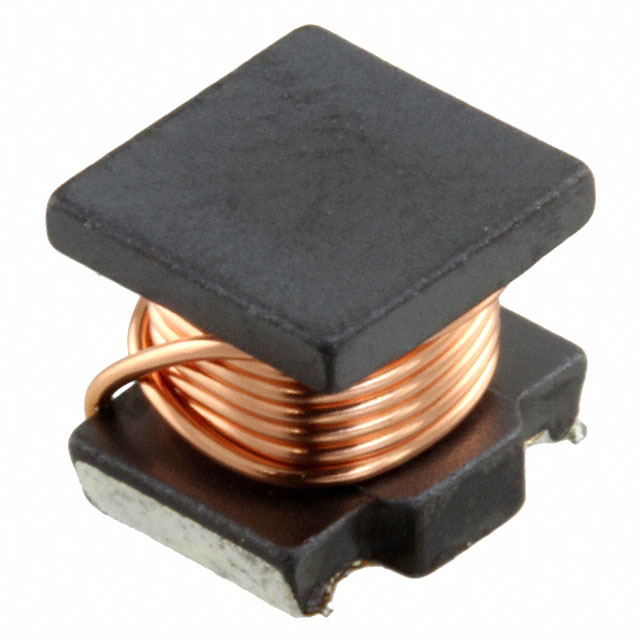

LQH55DN100M03L
