LQH31MNR56K03L
FIXED IND 560NH 200MA 610MOHM SMManufacturer: Murata Electronics
Categories: Fixed Inductors
Quality Control: Learn More
The Murata Electronics LQH31 series fixed inductor, part number LQH31MNR56K03L, is a wirewound, unshielded drum core inductor with an inductance value of 560 nH and a ±10% tolerance. It features a current rating of 200 mA and a DC resistance of 610 mOhms. The component is designed for surface mounting with a 1206 (3216 Metric) package size, measuring 0.126" L x 0.063" W (3.20mm x 1.60mm) with a maximum seated height of 0.079" (2.00mm). It operates within a temperature range of -40°C to 85°C and has a self-resonant frequency of 180 MHz. This inductor is commonly utilized in power supply circuits, DC-DC converters, and filtering applications across various electronic systems. The LQH31MNR56K03L is supplied on tape and reel.
Additional Information
Series: LQH31RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.126"" L x 0.063"" W (3.20mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) | 610mOhm |
| Q @ Freq | 30 @ 25MHz |
| Frequency - Self Resonant | 180MHz |
| Ratings | - |
| Current - Saturation (Isat) | - |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 1 MHz |
| Supplier Device Package | 1206 (3216 Metric) |
| Height - Seated (Max) | 0.079"" (2.00mm) |
| Inductance | 560 nH |
| Current Rating (Amps) | 200 mA |
Request a Quote
Clients Also Buy

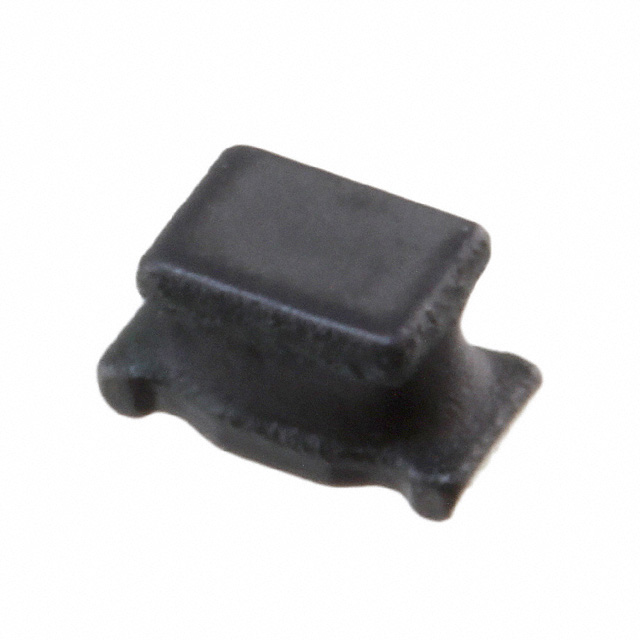

LQH31CN1R0M03L
