LQG15HN33NJ02D
FIXED IND 33NH 300MA 0.67OHM SMDManufacturer: Murata Electronics
Categories: Fixed Inductors
Quality Control: Learn More
33 nH Unshielded Multilayer Inductor 300 mA 670mOhm Max 0402 (1005 Metric)
Additional Information
Series: LQG15RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension | 0.039"" L x 0.020"" W (1.00mm x 0.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Multilayer |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 670mOhm Max |
| Q @ Freq | 8 @ 100MHz |
| Frequency - Self Resonant | 1.5GHz |
| Ratings | - |
| Current - Saturation (Isat) | - |
| Material - Core | Air |
| Inductance Frequency - Test | 100 MHz |
| Supplier Device Package | 0402 (1005 Metric) |
| Height - Seated (Max) | 0.022"" (0.55mm) |
| Inductance | 33 nH |
| Current Rating (Amps) | 300 mA |
Request a Quote
Clients Also Buy

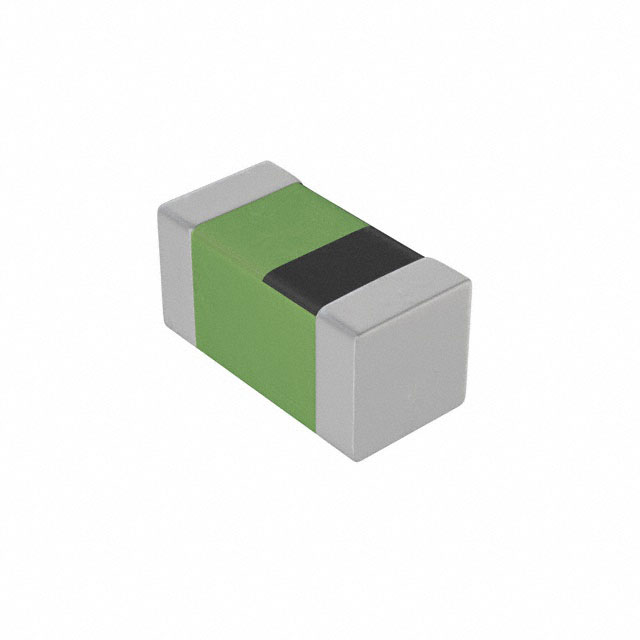

LQG15HS2N0S02D
